Check Point 5800 Security Appliance
Small enterprise and branch office security

Check Point 5800 Security Appliances

Check Point 5800 Security Appliance
Check Point 5800 Next Generation Threat Prevention Appliance
5800 Next Generation Threat Prevention Appliance
#CPAP-SG5800-NGTP
List Price: $45,000.00
Our Price: $36,225.00
Check Point 5800 Next Generation Threat Extraction Appliance
5800 Next Generation Threat Extraction Appliance
#CPAP-SG5800-NGTX
List Price: $53,700.00
Our Price: $43,229.00

Click here to jump to more pricing!

Overview:

The Check Point 5800 appliance combines the most comprehensive security protections to safeguard your mid-size enterprise. The 5800 is a 1U appliance with two I/O expansion slots for higher port capacity, redundant fans and a redundant power supply option, a 500 GB hard disk, and Lights-Out Management (LOM) for remote management. This powerful security appliance is optimized to deliver real-world threat prevention to secure your critical assets and environments.

Comprehensive Threat Prevention

The rapid growth of malware, growing attacker sophistication and the rise of new unknown zero-day threats require a different approach to keep enterprise networks and data secure. Check Point delivers fully integrated, comprehensive Threat Prevention with award-winning SandBlast™ Threat Emulation and Threat Extraction for complete protection against the most sophisticated threats and zero-day vulnerabilities.

Service Specification  Production Performance  Test (LAB) Performance
1U rack mountable.
Up to 26x1GbE ports or 8x10GbE ports.
Up to 16GB of Memory. Telescopic rails.
1750 SecurityPower*
22 Gbps Firewall Throughput
1 Gbps NGTP Throughput
35 Gbps Firewall Throughput (1518 byte UDP)
VPN throughput (AES-128)
3.2 Million / 6.4 Million with Extended RAM (HPP) Concurrent connections

Product Benefits

  • Enable the most advanced threat prevention security
  • Optimal performance even when inspecting SSL encrypted traffic
  • Future-proofed technology safeguards against tomorrow’s risks
  • Centralized control and LOM improves serviceability
  • High performance package optimizes platform performance
  • Modular, expandable chassis with flexible I/O options

Product Features

  • Simple deployment and management
  • Secure remote access to corporate resources from a wide variety of devices
  • One network expansion slot to add port density, fiber and fail-open IO card options
  • Redundant appliance clustering technologies eliminate a single point of failure

Key Features:

The most advanced threat prevention security

  • Comprehensive protections include firewall, IPS, application control, anti-bot, antivirus, URL filtering, and the award-winning sandboxing technology in Check Point SandBlast Zero-Day Protection
  • Next Generation Threat Prevention package provides uncompromising protection against known threats
  • SandBlast threat prevention provides the most advanced protections against unknown threats, vulnerabilities, and zero-day attacks

Complete protection without compromise

  • Hardware and software optimized to deliver full advanced threat prevention security, including inspecting SSL encrypted traffic
  • Up to 1,000 Mbps of real-world threat prevention throughput
  • Up to 22 Gbps of real-world firewall throughput

Modular, expandable chassis design

  • Optional redundant power supplies reduce single points of failure
  • Centralized control with Lights-Out-Management (LOM) for enhanced serviceability
  • Flexible I/O with a 40 Gigabit Ethernet (GbE) option

The Check Point 5000 appliances offer comprehensive and consolidated security available in two packages:

  • Next Generation Threat Prevention (NGTP): prevent sophisticated cyber threats with IPS, application control, antivirus, anti-bot, URL filtering, and email security
  • SandBlast Threat Prevention (NGTX): advanced next-generation zero-day threat prevention—NGTP with Threat Emulation and Threat Extraction
Prevent unknown threats

The 5000 appliances are built to protect branch offices to midsize enterprises from both known and unknown threats with antivirus, anti-bot, SandBlast Threat Emulation (Sandboxing), and SandBlast Threat Extraction technologies.

As part of the Check Point SandBlast Zero-Day Protection solution, the cloud-based Threat Emulation engine detects malware at the exploit phase, even before hackers can apply evasion techniques attempting to bypass the sandbox. Files are quickly quarantined and inspected, running in a virtual sandbox to discover malicious behavior before it enters your network. This innovative solution combines cloud-based, CPU-level inspection and OS-level sandboxing to prevent infection from the most dangerous exploits and zero-day and targeted attacks.

In addition, SandBlast Threat Extraction removes exploitable content, including active content and embedded objects, reconstructs files to eliminate potential threats, and promptly delivers sanitized content to users to maintain business flow.

Optional high-performance package

Customers with high connection capacity requirements can purchase the affordable High-Performance package. This includes the appliance plus one interface card with transceivers and Lights-Out-Management.

Flexible connectivity options

High-speed connectivity is essential to meeting the needs of today’s enterprise networks. That’s why the 5000 appliances are built to provide maximum port density and flexible connectivity in a compact, single rack unit form factor, including support for 4x1GbE,  4x10GbE (5600 and 5800) as well as 2x40GbE (5800).

Remote management and monitoring

An optional LOM card provides out-of-band remote management to diagnose, start, restart, and manage the appliance from a remote location. Administrators can also use the LOM web interface to remotely install an OS image from an ISO file.

A reliable, serviceable platform

The Check Point 5000 appliances deliver business continuity and serviceability through optional features such as hot swappable redundant power supplies as well as advanced Lights-Out-Management (LOM) for out-of-band management. In combination, these features ensure a greater degree of business continuity and serviceability for customer networks.

Integrated Security Management

Every Check Point appliance can be managed either locally via its available integrated security management or centrally via unified management. An intuitive, web-based administration interface provides local management of up to two 5000 appliances for high-availability deployments.

Technical Specifications:

Check Point 5800

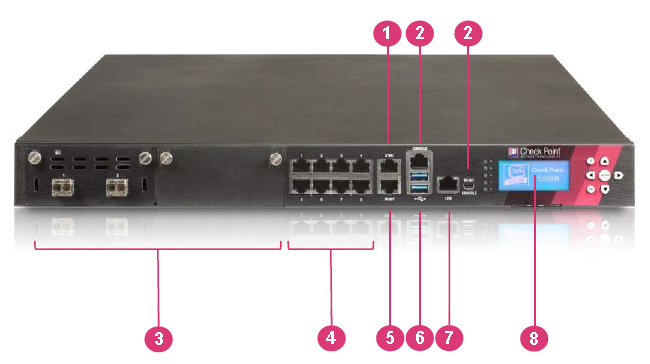

5800 Security Appliance

  1. Sync 10/100/1000Base-T RJ45 port
  2. RJ45/micro USB console port
  3. Two network card expansion slots (HPP)
  4. 8x 10/100/1000Base-T RJ45 ports
  5. Management 10/100/1000Base-T RJ45 port
  6. 2x USB 3.0 ports for ISO installation
  7. Lights-Out Management port
  8. Graphic LCD display
Appliance 5200 5400 5600 5800
Production Performance (Real-World Traffic Blend) 1
Security Power 425 600 950 1750
Firewall Throughput (Gbps) 5.3 10 17.5 22
IPS throughput (Gbps) 810 Mbps 1.08 1.9 3.05
NGFW throughput (Gbps) 520 Mbps 690 Mbps 1.18 2
Threat prevention (Gbps) 250 Mbps 330 Mbps 540 Mbps 1
Ideal Testing Conditions Performance (RFC 3511, 2544, 2647, 1242)
Firewall, 1518 byte UDP (Gbps) 16 22 25 35
Connections per Second (K) 125 150 185 185
Concurrent Connections (M)2 3.2/6.4 3.2/6.4 3.2/6.4 3.2/6.4
VPN AES-128 Throughput (Gbps) 1.88 2.16 6.5 10
IPS throughput (Gbps) 3 3.9 7.8 10
NGFW throughput (Gbps) 2.7 3.4 5.8 8.1
Virtual Systems
VS Supported (Default/Max)2 10/20 10/20 10/20 10/20
Hardware Specifications (Default/Max)
10/100/1000Base-T Ports 6/14 10/18 10/18 10/26
1000Base-F SFP Ports 0/4 0/4 0/4 0/8
10GBase-F-SFP+ Ports 0/0 0/0 0/4 0/8
40GBase-F SFP+ Ports 0/0 0/0 0/0 0/4
Memory 8 ,16 8, 16 8, 16 8, 16
Storage 1x 500 GB 1x 500 GB 1x 500 GB 1x 500 GB
I/O Expansion Slots 1 1 1 2
Lights-Out-Management Optional Optional Optional Included
Dimensions
Enclosure 1U 1U 1U 1U
Dimensions (standard wxdxh) 17.24 x 16.01 x 1.73 in. 17.24 x 16.01 x 1.73 in. 17.24 x 20 x 1.73 in. 17.24 x 20 x 1.73 in.
Dimensions (metric wxdxh) 438 x 406.55 x 44 mm 438 x 406.5 x 44 mm 438 x 508 x 44 mm 438 x 508 x 44 mm
Weight 6.22kg (13.7 lbs) 6.37kg (14 lbs) 7.95kg (17.53 lbs) 8.37kg (18.45 lbs)
Environment
Operating Environment 0°C - 40°C at 5 - 95% relative humidity
Non-Operating Environment (-20)°C - 70°C at 5 - 95% relative humidity
Power
Dual, Hot-Swap Power Supplies NA NA Optional Optional
Power Input 90 - 264VAC (47-63HZ)
Single Power Supply Rating 250W 250W 275W 275W
Power Consumption (Max) 62.9W 76.5W 103W 110W
Certifications
Safety UL60950-1, CB IEC60950-1, CE LVD EN60950-1, TUV GS
Emissions CE, FCC, VCCI, RCM/C-Tick
Environmental RoHS II, *REACH, *ISO14001
1assumes maximum production throughput with real-world traffic blend, a typical rule-base size, NAT and logging enabled and the most secure threat prevention protection
2 performance measured with default/maximum memory
Software Blade NGTP NGTX
Firewall
Identity Awareness
IPSec VPN
Advanced Networking & Clustering
Mobile Access 1
IPS
Application Control
URL Filtering
Antivirus
Anti-Bot
Anti-Spam & Email Security
Threat Extraction *
Threat Emulation *
DLP * *
Management Blades
Network Policy Management
Logging and Status
SmartEvent * *
SmartWorkflow * *
Monitoring * *
Management Portal * *
User Directory * *
SmartProvisioning * *
SmartReporter * *
Endpoint Policy Management * *
Compliance * *
NGTP  = Next Generation Threat Prevention; NGTX  = SandBlast Threat Prevention;
- Included
* - Optional
1 Five users are included in default package

Documentation:

Download the Check Point 5800 Appliance Datasheet (PDF).

Pricing Notes:

Check Point 5800 Security Appliance
5800 Next Generation Threat Prevention Appliance
#CPAP-SG5800-NGTP
List Price: $45,000.00
Our Price: $36,225.00
5800 Next Generation Threat Extraction Appliance
#CPAP-SG5800-NGTX
List Price: $53,700.00
Our Price: $43,229.00
Check Point 5600 Security Appliance - High Performance Package
5800 Next Generation Threat Prevention Appliance - High Performance Package
#CPAP-SG5800-NGTP-HPP
List Price: $53,000.00
Our Price: $42,665.00
5800 Next Generation Threat Prevention Appliance - High Performance Package with 10 Virtual Systems
#CPAP-SG5800-NGTP-HPP-VS10
List Price: $63,000.00
Our Price: $50,715.00
Two 5800 Next Generation Threat Prevention Appliances with High Performance Package with 10 Virtual Systems
#CPAP-SG5800-NGTP-HPP-VS10-2
List Price: $113,400.00
Our Price: $91,287.00
5800 Next Generation Threat Extraction Appliance - High Performance Package
#CPAP-SG5800-NGTX-HPP
List Price: $61,700.00
Our Price: $49,669.00
5800 Next Generation Threat Extraction Appliance - High Performance Package with 10 Virtual Systems
#CPAP-SG5800-NGTX-HPP-VS10
List Price: $71,700.00
Our Price: $57,719.00
Two 5800 Next Generation Threat Extraction Appliances with High Performance Package with 10 Virtual Systems
#CPAP-SG5800-NGTX-HPP-VS10-2
List Price: $129,060.00
Our Price: $103,893.00
Check Point 5800 Security Appliance - High Performance Package with SSD
5800 Next Generation Threat Prevention Appliance - High Performance Package with SSD
#CPAP-SG5800-NGTP-HPP-SSD
List Price: $53,800.00
Our Price: $43,309.00
5800 Next Generation Threat Prevention Appliance - High Performance Package with 10 Virtual Systems and SSD
#CPAP-SG5800-NGTP-HPP-VS10-SSD
List Price: $63,800.00
Our Price: $51,359.00
A cluster of two 5800 Appliances with High Performance Package (HPP), with 10 Virtual Systems and 1 Year Next Generation Threat Prevention (NGTP) service and SSD
#CPAP-SG5800-NGTP-HPP-VS10-SSD-2
List Price: $114,840.00
Our Price: $92,446.00
5800 Next Generation Threat Prevention & SandBlast (NGTX) Appliance - High Performance Package with SSD
#CPAP-SG5800-NGTX-HPP-SSD
List Price: $62,500.00
Our Price: $50,313.00
5800 Next Generation Threat Prevention & SandBlast (NGTX) Appliance - High Performance Package with 10 Virtual Systems and SSD
#CPAP-SG5800-NGTX-HPP-VS10-SSD
List Price: $72,500.00
Our Price: $58,363.00
A cluster of two 5800 Appliances with High Performance Package (HPP), with 10 Virtual Systems and 1 Year Next Generation Threat Prevention & SandBlast™ (NGTX) service and SSD
#CPAP-SG5800-NGTX-HPP-VS10-SSD-2
List Price: $130,500.00
Our Price: $105,053.00
Check Point 5800 Security Appliance with SSD
5800 Next Generation Threat Prevention Appliance with SSD
#CPAP-SG5800-NGTP-SSD
List Price: $45,800.00
Our Price: $36,869.00
5800 Next Generation Threat Prevention & SandBlast (NGTX) Appliance with SSD
#CPAP-SG5800-NGTX-SSD
List Price: $54,500.00
Our Price: $43,873.00
Check Point 5800 Security Appliance for High Availability
5800 Next Generation Threat Prevention Appliance for High Availability
#CPAP-SG5800-NGTP-HA
List Price: $36,000.00
Our Price: $28,980.00
5800 Next Generation Threat Extraction Appliance for High Availability
#CPAP-SG5800-NGTX-HA
List Price: $42,960.00
Our Price: $34,583.00
Check Point 5800 Security Appliance - High Performance Package for HA
5800 Next Generation Threat Prevention Appliance - High Performance Package for HA
#CPAP-SG5800-NGTP-HPP-HA
List Price: $42,400.00
Our Price: $34,132.00
5800 Next Generation Threat Prevention Appliance - High Performance Package with 10 Virtual Systems for HA
#CPAP-SG5800-NGTP-HPP-VS10-HA
List Price: $50,400.00
Our Price: $40,572.00
5800 Next Generation Threat Extraction Appliance - High Performance Package for HA
#CPAP-SG5800-NGTX-HPP-HA
List Price: $49,360.00
Our Price: $39,735.00
5800 Next Generation Threat Extraction Appliance - High Performance Package with 10 Virtual Systems for HA
#CPAP-SG5800-NGTX-HPP-VS10-HA
List Price: $57,360.00
Our Price: $46,175.00
Check Point 5800 Security Appliance - High Performance Package for HA with SSD
5800 Next Generation Threat Prevention Appliance - High Performance Package for HA with SSD
#CPAP-SG5800-NGTP-HPP-SSD-HA
Our Price: $43,040.00
5800 Next Generation Threat Prevention & SandBlast (NGTX) Appliance - High Performance Package for HA with SSD
#CPAP-SG5800-NGTX-HPP-SSD-HA
Our Price: $50,000.00
Check Point 5800 Security Appliance for High Availability with SSD
5800 Next Generation Threat Prevention Appliance for High Availability with SSD
#CPAP-SG5800-NGTP-SSD-HA
Our Price: $36,640.00
5800 Next Generation Threat Prevention & SandBlast (NGTX) Appliance for High Availability with SSD
#CPAP-SG5800-NGTX-SSD-HA
Our Price: $43,600.00
Next Generation Threat Prevention Package Support Options
Next Generation Threat Prevention Package for 1 year for 5800 Appliance
#CPSB-NGTP-5800-1Y
Our Price: $16,600.00
Next Generation Threat Prevention Package for 2 year for 5800 Appliance
#CPSB-NGTP-5800-2Y
Our Price: $31,540.00
Next Generation Threat Prevention Package for 3 year for 5800 Appliance
#CPSB-NGTP-5800-3Y
Our Price: $44,820.00
Next Generation Threat Prevention Package for 1 year for 5800 Appliance HA
#CPSB-NGTP-5800-1Y-HA
Our Price: $13,280.00
Next Generation Threat Prevention Package for 2 year for 5800 Appliance HA
#CPSB-NGTP-5800-2Y-HA
Our Price: $25,232.00
Next Generation Threat Prevention Package for 3 year for 5800 Appliance HA
#CPSB-NGTP-5800-3Y-HA
Our Price: $35,856.00
Next Generation Threat Extraction Package Support Options
Next Generation Threat Extraction Package for 1 year for 5800 Appliance
#CPSB-NGTX-5800-1Y
Our Price: $25,500.00
Next Generation Threat Extraction Package for 2 year for 5800 Appliance
#CPSB-NGTX-5800-2Y
Our Price: $48,450.00
Next Generation Threat Extraction Package for 3 year for 5800 Appliance
#CPSB-NGTX-5800-3Y
Our Price: $68,850.00
Next Generation Threat Extraction Package for 1 year for 5800 Appliance HA
#CPSB-NGTX-5800-1Y-HA
Our Price: $20,400.00
Next Generation Threat Extraction Package for 2 year for 5800 Appliance HA
#CPSB-NGTX-5800-2Y-HA
Our Price: $38,760.00
Next Generation Threat Extraction Package for 3 year for 5800 Appliance HA
#CPSB-NGTX-5800-3Y-HA
Our Price: $55,080.00
Next Generation Firewall Package
Next Generation Firewall Package for 1 year for 5800 Appliance
#CPSB-NGFW-5800-1Y
Our Price: $9,500.00
Next Generation Firewall Package for 2 year for 5800 Appliance
#CPSB-NGFW-5800-2Y
Our Price: $18,050.00
Next Generation Firewall Package for 3 year for 5800 Appliance
#CPSB-NGFW-5800-3Y
Our Price: $25,650.00
Next Generation Firewall Package for 1 year for 5800 Appliance HA
#CPSB-NGFW-5800-1Y-HA
Our Price: $7,600.00
Next Generation Firewall Package for 2 year for 5800 Appliance HA
#CPSB-NGFW-5800-2Y-HA
Our Price: $14,440.00
Next Generation Firewall Package for 3 year for 5800 Appliance HA
#CPSB-NGFW-5800-3Y-HA
Our Price: $20,520.00
