Check Point 700 Security Appliances
Advanced Security, Uncompromising Performance

Check Point 700 Series Next Generation Firewall offer high performance, integrated devices offering firewall, VPN, antivirus, application visibility and control, URL filtering, email security and SandBlast Zero-Day Protection, all in a compact desktop form factor that is simple to configure and manage.

Check Point 700 Model Lineup:

Check Point 730 Appliance

Wireless Model Available!

  • 900 Mbps Firewall Throughput
  • 100 Mbps Threat Prevention Throughput
  • 1x WAN, 1x DMZ, 6x LAN switch ports
  • DSL option

Check Point 750 Appliance

Wireless Model Available!

  • 1.1 Gbps Firewall Throughput
  • 200 Mbps Threat Prevention Throughput
  • 1x WAN, 1x DMZ, 6x LAN switch ports
  • DSL option

Check Point 770 Appliance

Wireless Model Available!

  • 1.6 Gbps Firewall Throughput
  • 270 Mbps Threat Prevention Throughput
  • 1x WAN, 1x DMZ, 16x LAN switch ports
  • DSL option

Check Point 790 Appliance

Wireless Model Available!

  • 1.8 Gbps Firewall Throughput
  • 330 Mbps Threat Prevention Throughput
  • 1x WAN, 1x DMZ, 16x LAN switch ports
  • PoE option

Overview:

The Small Business Challenge

Growing both quickly and safely can be difficult for small businesses. As a small business, you worry about survival and as you grow your business in size, you worry about dozens of issues; such as continuing to grow your business, protecting your customers and beating your competition to market. You want a secure network, but how many people can you justify in your IT department? Security does not have to mean a large IT staff.

Our Solution

The Check Point 700 Appliance family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions to protect small business employees, networks and data from cyber-theft. The 700 Security Appliances offer integrated, multi-layered security in a quiet, compact desktop form factor.

The Most Advanced Cybersecurity

The Most Advanced Cybersecurity

Protect your business against ransomware, viruses, spam and dangerous applications and websites

Unparalleled Visibility and Control

Unparalleled Visibility and Control

Have visibility and control on Internet usage with real-time reports

Absolute Privacy

Absolute Privacy

Securely and privately access your data from anywhere with VPN

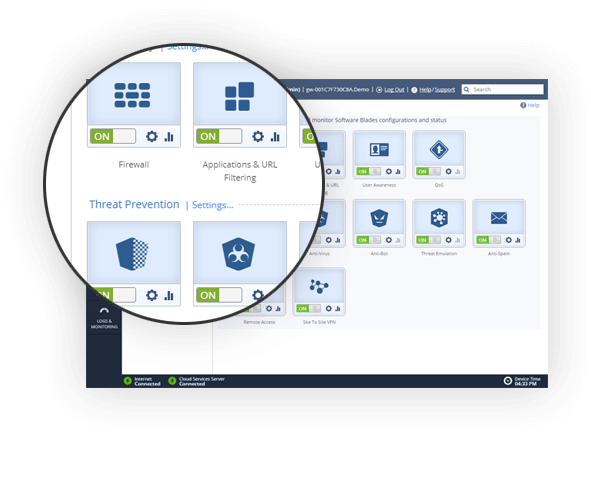

Setup can be done in minutes using pre-defined security policies and our step-by-step configuration wizard. Check Point 700 Appliances are conveniently manageable both locally via a Web interface and centrally by means of the Check Point Security Management Portal (SMP). Available in two appliances, the 730/750 and the 770/790, these appliances come standard with eight (8) 1-Gigabit or eighteen (18) Ethernet ports respectively. Connect securely from any device directly or through secure authenticated Wi-Fi.

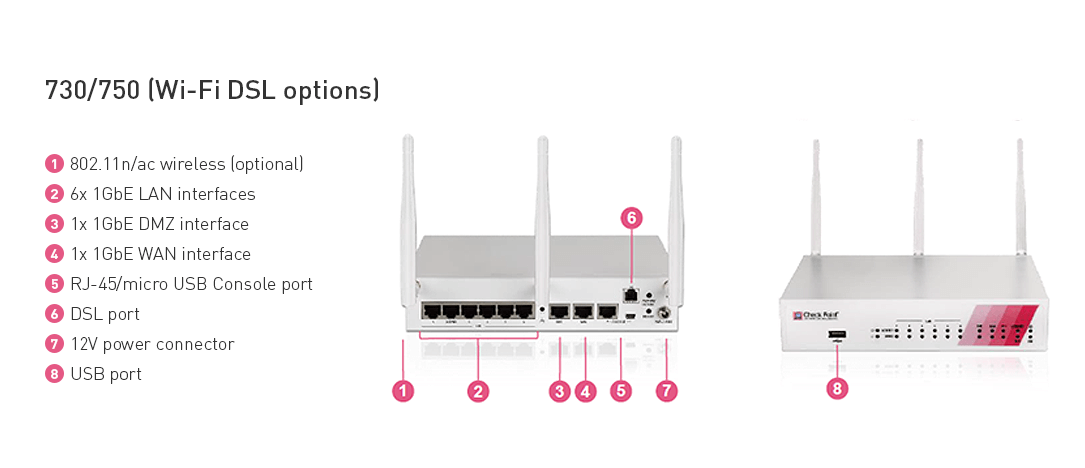

730/750 Model Specifications:

730 750
Ideal Testing Conditions
Firewall 1518 Byte UDP Packets (Mbps) 2,000 2,500
IPS Throughput (Mbps) 325 575
VPN AES-128 Throughput (Mbps) 275 500
Connections per Second 20,000 27,000
Concurrent Connections 500,000 500,000
Real-World Production Conditions 1
SecurityPower 75 141
Firewall Throughput (Mbps) 900 1,100
Threat Prevention (Mbps) 100 200
Software
Security Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)
Unicast, Multicast Routing OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP
Mobile Access User License 100 in default package, 150 maximum 100 in default package, 150 maximum
Hardware
WAN 1x 10/100/1000Base-T RJ-45 port
DMZ 1x 10/100/1000Base-T RJ-45 port
LAN Switch 6x 10/100/1000Base-T RJ-45 ports
Wi-Fi (optional) 802.11 b/g/n/ac MIMO 3x3
Radio Band (association rate) 1 radio band: 2.4Ghz (max 450 Mbps) or 5Ghz (max 1300 Mbps)
Console Port 1x RJ-45, 1x Mini USB
USB Port 1x USB 3.0
SD Card Slot Micro SDHC slot
3G/4G Modem Support Yes
DSL (optional) VDSL: G.993.1 (VDSL), G.993.2 (VDSL2), G.993.5 (VDSL2 Vectoring), G.998.4 (G.INP) VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a ADSL: Annex A (POTS), Annex B (ISDN), G.992.1 (ADSL), G.992.3 (ADSL2), G.992.5 (ADSL2+), Annex M (ADSL2/2+) ,Annex L Reach-extended (ADSL2) Dying Gasp, DSL Forum TR-067, TR-100, TR-114 Conformity
Dimensions
Enclosure Desktop
Dimensions WxHxD 210 x 42.5 x 155 mm, 8.3 x 1.7 x 6.1 in.
Weight 1.3 kg (2.8 lbs.)
Environment
Operating / Storage 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
Power Requirements
AC Input 110 – 240V, 50 – 60 Hz
Power Supply Rating 12V/3.33A 40W desktop adaptor
Power Consumption (Max) 25W (non-Wi-Fi), 30W (Wi-Fi)
Heat Dissipation 85.3 BTU/hr (non-Wi-Fi), 102.4 BTU/hr (Wi-Fi)
Certifications
Safety/Emissions/Environment UL/c-UL, IEC 60950 CB / EMC: EN55022 Class B, FCC: Part 15 Class B / RoHS, REACH, WEEE

Notes:
1 performance measured with a real-world SMB HTTP traffic blend, a typical rule-base, NAT, logging and the most secure threat prevention

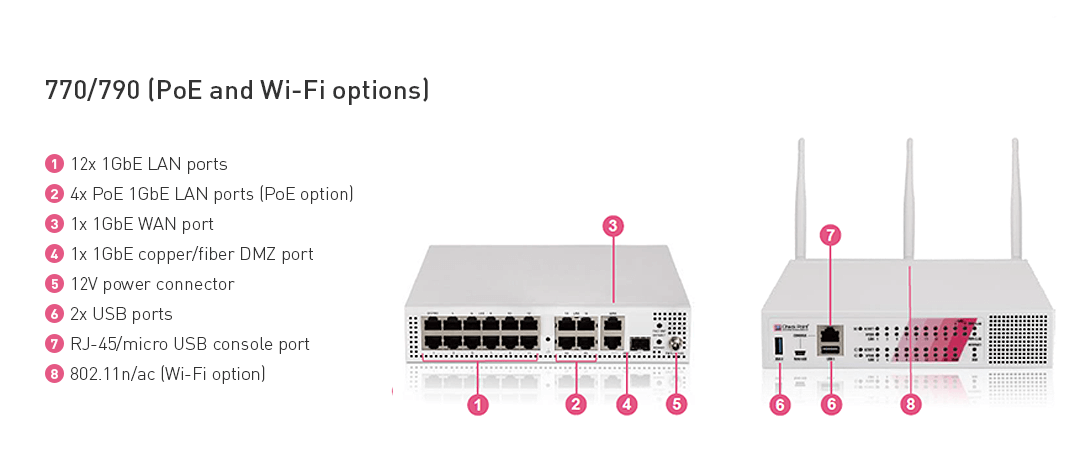

770/790 Model Specifications:

770 790
Ideal Testing Conditions
Firewall 1518 Byte UDP Packets (Mbps) 3,200 4,000
IPS Throughput (Mbps) 700 800
VPN AES-128 Throughput (Mbps) 500 1,000
Connections per Second 30,000 40,000
Concurrent Connections 500,000 500,000
Real-World Production Conditions 1
SecurityPower 194 233
Firewall Throughput (Mbps) 1,600 1,800
Threat Prevention (Mbps) 270 330
Software
Security Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)
Unicast, Multicast Routing OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP
Mobile Access User License 200 in default package, 300 maximum 200 in default package, 300 maximum
Hardware
WAN 1x 10/100/1000Base-T RJ-45 port
DMZ 1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP (transceiver not included) port
LAN Switch 16x 10/100/1000Base-T RJ-45 ports (total)
PoE Ports (optional) 4x 10/100/1000Base-T RJ-45 out of the 16 LAN ports
Wi-Fi (optional) 802.11 b/g/n and 802.11 n/ac MIMO 3x3
Radio Band (association rate) 2 concurrent: 2.4Ghz (max 450 Mbps) and 5Ghz (max 1300 Mbps)
Console Port 1x RJ-45, 1x Mini USB
USB Port 2x USB 3.0
SD Card Slot Micro SDHC slot
3G/4G Modem Support Yes
Dimensions
Enclosure Desktop
Dimensions WxHxD 210 x 42.5 x 200.5 mm, 8.3 x 1.7 x 7.9 in.
Weight 1.6 kg (3.6 lbs.)
Environment
Operating / Storage 0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
Power Requirements
AC Input 110 – 240V, 50 – 60 Hz
Power Supply Rating 12V/5.4A 65W, 12V/12.5A 150W (PoE option)
Total Available PoE Power Max load on each 4x PoE ports: 15.4 W (802.3af), or use only 2x PoE ports with max load of 31W (802.3at) each
Power Consumption (Max) 55W (non-Wi-Fi), 60W (Wi-Fi), 130W (PoE)
Heat Dissipation 187.7 BTU/hr (non-Wi-Fi), 204.7 BTU/hr (Wi-Fi), 443.6 BTU/hr (PoE)
Certifications
Safety/Emissions/Environment UL/c-UL, IEC 60950 CB / EMC: EN55022 Class B, FCC: Part 15 Class B / RoHS, REACH, WEEE

Notes:
1 performance measured with a real-world SMB HTTP traffic blend, a typical rule-base, NAT, logging and the most secure threat prevention

Features & Benefits:

Product Benefits

  • All-in-one protection against viruses, spam, bots, dangerous applications, malicious websites and zero-day threats with SandBlast
  • Continuous security updates from ThreatCloudTM
  • Fast set-up, instant protection
  • Secure remote access for your mobile workers
  • Easy to understand usage reports
  • Cloud management provides security experts without the staffing overhead

Product Features

  • Highest ranked Next Generation Firewall
  • Simple and intuitive management
  • Flexible internet access options including DSL and support of external 3G/4G/LTE modems
  • Integrated 802.11ac wireless security with guest access
  • Power over Ethernet (PoE and PoE+) option

Fast. Simple. Secure.

The 700 series appliances provide comprehensive protection for any small office environment:

  • Next Generation Firewall
  • IPSec VPN & SSL_VPN
  • Application Control & Web Filtering
  • Intrusion Prevention
  • Antivirus
  • Anti-Bot
  • Anti-Spam
  • SandBlast Threat Emulation

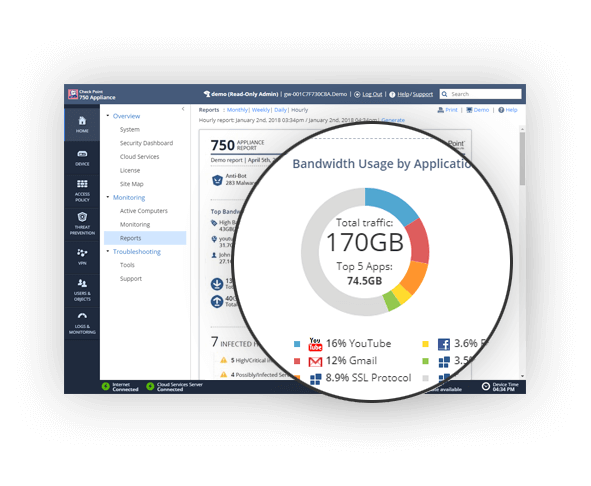

Simple, intuitive and actionable scheduled reports.

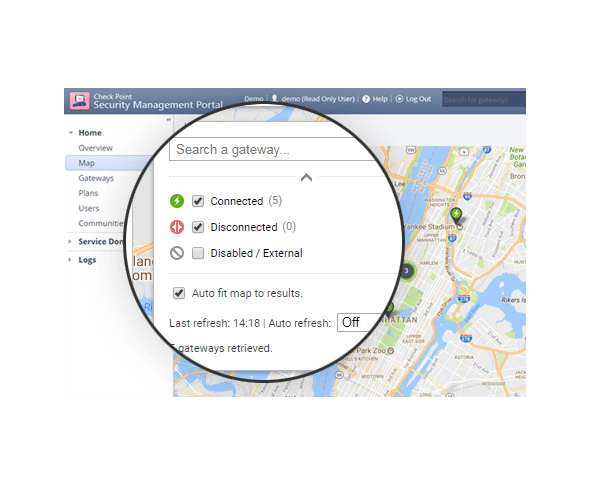

An intuitive web-based user interface, enables managed service providers to provision security efficiently for small businesses. With a robust architecture that scales to manage over 10,000 Check Point Small Business appliances, the SMP easily keeps pace with your security-as-a-service business.

Documentation:

Download the Check Point 700 Security Appliances Datasheet (.PDF)
