Check Point 12600 Appliance
Datacenter-grade security appliance (1800SPU/30Gbps) for superior multi Software Blades performance

Check Point 12600 Appliance

Sorry, this unit has been discontinued. Please, contact us for a replacement product!

Click here to jump to more pricing!

Overview:

Today the enterprise gateway is more than a firewall. It is a security device presented with an ever-increasing number of sophisticated threats. As an enterprise security gateway it must use multiple technologies to control network access, detect sophisticated attacks and provide additional security capabilities like data loss prevention and protection from web-based threats. The proliferation of mobile devices like smartphones and Tablets and new streaming, social networking and P2P applications requires a higher connection capacity and new application control technologies. Finally, the shift towards enterprise private and public cloud services, in all its variations, changes the company borders and requires enhanced capacity and additional security solutions.

Check Point’s new appliances combine fast networking technologies with high performance multi-core capabilities—providing the highest level of security without compromising on network speeds to keep your data, network and employees secure. Optimized for the Software Blades Architecture, each appliance is capable of running any combination of Software Blades—providing the flexibility and the precise level of security for any business at every network location by consolidating multiple security technologies into a single integrated solution.

Each Check Point Appliance supports the Check Point 3D security vision of combining policies, people and enforcement for unbeatable protection. To address evolving security needs, Check Point offers Next Generation Security packages of Software Blades focused on specific customer requirements. Threat Prevention, Data Protection, Web Security and Next Generation Firewall technologies are key foundations for a robust 3D Security blueprint.

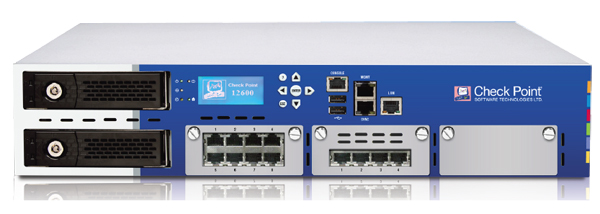

Check Point 12600 Appliance

With high security Software Blades performance and great scalability, the 12600 Appliance is a datacenter-grade platform offering advanced redundancy and modularity. In addition to two onboard 1 Gigabit copper Ethernet ports, three available expansion slots can be used to configure a variety of network options such as 1 Gigabit Ethernet copper, 1 Gigabit Ethernet fiber, and 10 Gigabit Ethernet fiber connections. The 12600 default configuration includes eight 1 Gigabit Ethernet copper ports and a four 1 Gigabit Ethernet copper port expansion card. Fully loaded, the 12600 includes a total of twenty-six 1 Gigabit Ethernet ports or twelve 10 Gigabit Ethernet ports.

The 12600 includes Lights-Out-Management (LOM) and hotswappable redundant disk drives and power supplies. The 12600 Appliance is a two rack unit (2RU) security appliance, with 2050 SecurityPower Units, that offers real-world firewall throughput of 14 Gbps and real-world IPS throughput of 3.58 Gbps.

Key Features

  • 2050 SecurityPower ™
  • 14 Gbps production firewall throughput
  • 3.5 Gbps production IPS throughput
  • High port density with up to 26 ports
  • Dual redundant hot swappable power supplies and HDD
  • Lights-Out-Management

Key Benefits

  • Data-center grade appliance
  • All-inclusive security appliance
  • Simplifies administration with a single integrated management console
  • Extensible Software Blade Architecture
  • Ensures data security for remote access and site-to-site communications
* Optional

Key Features:

SecurityPower

Until today security appliance selection has been based upon selecting specific performance measurements for each security function, usually under optimal lab testing conditions and using a security policy that has one rule. Today customers can select security appliances by their SecurityPower ratings which are based on real-world customer traffic, multiple security functions and a typical security policy.

SecurityPower is a new benchmark that measures the capability and capacity of an appliance to perform multiple advanced security functions (Software Blades) such as IPS, DLP and Application Control in real world traffic conditions. This provides an effective metric to better predict the current and future behavior of appliances under security attacks and in day-to-day operations. Customer SecurityPower Unit (SPU) requirements, determined using the Check Point Appliance Selection Tool, can be matched to the SPU ratings of Check Point Appliances to select the right appliance for their specific requirements.

All-inclusive Security Solutions

The Check Point 12600 Appliance offers a complete and consolidated security solution based on the Check Point Software Blade architecture. The appliance is available in four Software Blade packages and extensible to include additional Software Blades for further security protection.

  • Next Generation Firewall (NGFW): identify and control applications by user and scan content to stop threats—with IPS and Application Control.
  • Next Generation Secure Web Gateway (SWG): enables secure use of Web 2.0 with real time multi-layered protection against web-borne malware—with Application Control, URL Filtering, Antivirus and SmartEvent.
  • Next Generation Data Protection (NGDP): preemptively protect sensitive information from unintentional loss, educate users on proper data handling policies and empower them to remediate incidents in real-time—with IPS, Application Control and DLP.
  • Next Generation Threat Prevention (NGTP): apply multiple layers of protection to prevent sophisticated cyber-threats— with IPS, Application Control, Antivirus, Anti-Bot, URL Filtering and Email Security.

Prevent Unknown Threats With Threatcloud Emulation

Check Point Appliances are a key component in the ThreatCloud Ecosystem providing excellent protection from undiscovered exploits, zero-day and targeted attacks. Appliances inspect and send suspicious files to the ThreatCloud Emulation Service which runs them in a virtual sandbox to discover malicious behavior. Discovered malware is prevented from entering the network. A signature is created and sent to the ThreatCloud which shares information on the newly identified threat to protect other Check Point customers.

Inclusive High Performance Package

Customers with high connection capacity requirements can purchase the affordable High Performance Package with the Next Generation security package of their choice. This includes the appliance plus a 4x10Gb SFP+ interface card, transceivers and 12 GB of memory for high connection capacity.

A Reliable Serviceable Platform

The Check Point 12600 appliance delivers business continuity and serviceability through features such as hot-swappable redundant power supplies, hot-swappable redundant hard disk drives (RAID) and an advanced LOM card for out-of-band management. Combined together, these features ensure a greater degree of business continuity and serviceability when these appliances are deployed in the customer’s networks.

Remote Platform Management And Monitoring

A Lights-Out-Management (LOM) card provides out-of-band remote management to remotely diagnose, start, restart and manage the appliance from a remote location. Administrators can also use the LOM web interface to remotely install an OS image from an ISO file.

GAiA—The Unified Security OS

Check Point GAiA is the next generation Secure Operating System for all Check Point appliances, open servers and virtualized gateways. GAiA combines the best features from IPSO and SecurePlatform into a single unified OS providing greater efficiency and robust performance. By upgrading to GAiA, customers will benefit from improved appliance connection capacity and reduced operating costs. With GAiA, customers will gain the ability to leverage the full breadth and power of all Check Point Software Blades. GAiA secures IPv4 and IPv6 networks utilizing the Check Point Acceleration & Clustering technology and it protects the most complex network environments by supporting dynamic routing protocols like RIP, OSPF, BGP, PIM (sparse and dense mode) and IGMP. As a 64-Bit OS, GAiA increases the connection capacity of select appliances. ™

GAiA simplifies management with segregation of duties by enabling role-based administrative access. Furthermore, GAiA greatly increases operation efficiency by offering Automatic Software Updates. The intuitive and feature-rich Web interface allows for instant search of any commands or properties. GAiA offers full compatibility with IPSO and SecurePlatform command line interfaces, making it an easy transition for existing Check Point customers.

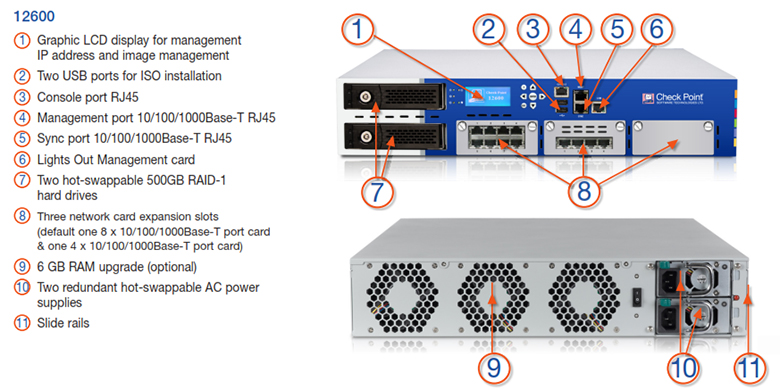

Technical Specifications:

Check Point 12600 Appliance

Base Configuration

  • 2 on board 1GbE copper interface
  • 4x1GbE copper interfaces card (for 1 of the 3 expansion slots)
  • 8x1GbE copper interfaces card (for 1 of the 3 expansion slots)
  • 6 GB memory
  • Redundant dual hot-swappable Power Supplies
  • Redundant dual hot-swappable 500G Hard Drives
  • LOM card
  • Slide rails (22” to 32”)

Network Expansion Slot Options (3 slots)

  • 4 x 10/100/1000Base-T RJ45 ports
  • 8 x 10/100/1000Base-T RJ45 ports
  • 2 x 1000Base-F SFP ports
  • 4 x 1000Base-F SFP ports
  • 2 x 10GBase-F SFP+ ports
  • 4 x 10GBase-F SFP+ ports
  • 4 x 10/100/1000Base-T Fail-Open NIC
  • 4 x 1000Base-F SX or LX Fail-Open NIC
  • 2 x 10GBase-F SR or LR Fail-Open NIC

Max Configuration

  • Up to 26 x 10/100/1000Base-T RJ45 ports
  • Up to 12 x 1000Base-F SFP ports
  • Up to 12 x 10GBase-F SFP+ ports
  • 12 GB memory

Production Performance1

  • 2050 SecurityPower
  • 14 Gbps firewall throughput
  • 3.58 Gbps firewall and IPS throughput

RFC 3511, 2544, 2647, 1242 Performance Tests (LAB)

  • 30 Gbps of firewall throughput, 1518 byte UDP
  • 7 Gbps of VPN throughput, AES-128
  • 55,000 max IPsec VPN tunnels
  • 6 Gbps of IPS throughput, Recommended IPS profile, IMIX traffic blend
  • 2.5/5
  • million concurrent connections
  • 130,000 connections per second, 64 byte HTTP response
  • 2

Network Connectivity

  • IPv4 and IPv6
  • 1024 interfaces or VLANs per system
  • 4096 interfaces per system (in Virtual System mode)
  • 802.3ad passive and active link aggregation
  • Layer 2 (transparent) and Layer 3 (routing) mode

High Availability

  • Active/Active - L3 mode
  • Active/Passive - L3 mode
  • Session synchronization for firewall and VPN
  • Session failover for routing change
  • Device failure detection
  • Link failure detection
  • ClusterXL or VRRP

Virtual Systems

  • Max VSs: 75 (w/6GB), 150 (w/12GB)

Dimensions

  • Enclosure: 2RU
  • Standard (W x D x H): 17.24 x 22.13 x 3.46 in.
  • Metric (W x D x H): 438 x 562 x 88 mm
  • Weight: 23.4 kg (51.6 lbs.)

Power Requirements

  • AC Input Voltage: 100 - 240V
  • Frequency: 47-63 Hz
  • Single Power Supply Rating: 400 W
  • Power Consumption Maximum: 220 W
  • Maximum thermal output: 750.6 BTU

Operating Environmental Conditions

  • Temperature: 32° to 104°F / 0° to 40°C
  • Humidity: 20%-90% (non-condensing)

Storage Conditions

  • Temperature: –4° to 158°F / –20° to 70°C
  • Humidity: 5% to 95% @60°C

Certifications

  • Safety: CB, UL/cUL, CSA, TUV, NOM, CCC, IRAM, PCT/GoST
  • Emissions: FCC, CE, VCCI, C-Tick, CCC, ANATEL, KCC
  • Environmental: RoHS
1Maximum R77 production performance based upon the SecurityPower benchmark. Real-world traffic, Multiple Software Blades, Typical rule-base, NAT and Logging enabled. Check Point recommends 50% SPU utilization to provide room for additional Software Blades and future traffic growth. Find the right appliance for your performance and security requirements using the Appliance Selection Tool.
2
With GAiA OS and memory upgrade
Software Blade NGFW NGDP NGSWG NGTP NGTX
Firewall
Identity Awareness
IPSec VPN
Advanced Networking & Clustering
Mobile Access 1 *
IPS *
Application Control
DLP * * * *
URL Filtering * *
Antivirus  * *
Anti-Spam & Email Security * * *
Anti-Bot * * *
Threat Extraction * * * *
Threat Emulation * * * *
Management Blades
Network Policy Management
Logging and Status
SmartEvent * * * *
SmartWorkflow * * * * *
Monitoring * * * * *
Management Portal * * * * *
User Directory * * * * *
SmartProvisioning * * * * *
SmartReporter * * * * *
Endpoint Policy Management * * * * *
 Compliance * * * * *
NGFW  = Next Generation Firewall;    NGDP  = Next Generation Data Protection;   NGTP = Next Generation Threat Prevention; NGSWG = Next Generation Secure Web Gateway
- Included
* - Optional
1 Five users are included in default package

Documentation:

Download the Check Point 12600 Appliance Datasheet (PDF).
