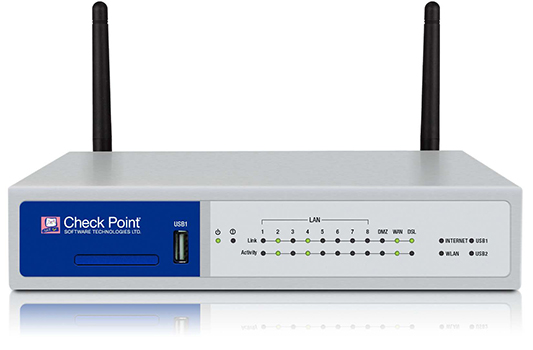

Check Point 1120 Appliance
Big security for small branches
Sorry, this product is no longer available, Please, contact us for a replacement product!
Click here to jump to more pricing!
The Check Point 1120 appliance is an all-inclusive, centrally managed, security appliance for branch offices and remote sites. Built on the Software Blades Architecture, the 1120 Appliance offers the same enterprise-class Check Point security that is used by all of the Fortune 100; on a compact desktop form factor
- Software blades architecture on a small form-factor
- 10x1GbE ports, ADSL and 3G support
- Local and Central management options
- SecurityPower: 28
- Firewall Throughput: 750 Mbps
- IPS Throughput: 720 Mbps (Default)/ 100 Mbps (Recommended)
In the age of global business and increasingly more distributed workforce, remote and branch staff demand access to corporate resources in order to work effectively and efficiently. However, even a small data breach can expose growing companies to crippling lawsuits, penalties and loss of reputation. As hacking techniques and malware evolve, the threat of data loss compels companies to further restrict access to sensitive data. With limited IT budgets and resources, branch offices need an inexpensive, yet effective solution to provide secure access to critical resources from anywhere, while minimizing the risk of a data breach.
The Check Point 1100 Appliances are a simple, affordable and easy to deploy all-in-one solutions for delivering industry leading security to protect the weakest link in your enterprise network—the remote branch offices. Protect against cyber threats with Check Point Threat Prevention Software Blades. The Check Point 1100 Appliance is an all-in-one, centrally managed, security appliance for branch offices and remote sites. Built on the Software Blades Architecture, the 1100 Appliance offers the same enterprise-class security used by all Fortune 100 companies—in a compact desktop form factor.
The 1100 Appliances, available in 3 models to match the number of users protected, are ideal for small offices with from one to fifty employees. A wide variety of network interface options are available including 1GbE Ethernet ports, 802.11b/g/n WiFi, ADSL and 3G wireless connections. These compact desktop appliances deliver outstanding performance of 1.5 Gbps firewall and 220 Mbps of VPN throughput. For local management and support in a small office environment, an easy and intuitive web-based local management interface is available. Enterprises who want to manage security from a central office can leverage Check Point Security Management or Multi-Domain Security Management to remotely manage and apply a consistent security policy to hundreds of devices across the field offices.
- Software Blade architecture in a small form-factor
- New hardware optimized to address branch office network needs
- Flexible management options
- Multi-layered protection against today’s sophisticated cyber-threats
- Multiple network interfaces with optional wireless connectivity and ADSL connectivity to support any network deployment
- Multiple management options to address any organization’s needs
- Simplified web-based Local Management
- Centralized with Check Point Security Management
Enterprise Security in a Small Form-factor
Best-in-class Integrated Firewall and IPS 1100 Appliances include the industry’s most proven firewall technology, based on the same Check Point technology that secures the Fortune 100. Together with Check Point’s proven IPS (rated “Recommend” by NSS); the 1100 Appliance ensures protection of remote sites from both known and unknown threats. Next Generation Firewall Capabilities Check Point’s Application Control and URL Filtering Software Blades unify web site access control with application control for improved security and lower cost. Identify, allow, block or limit the use of thousands of applications, including Web 2.0 and social networking, regardless of port, protocol or evasive technique used to traverse the network. Combined with the Identity Awareness Software Blade, administrators can create granular policies to strike a balance between user application usage and security, productivity and resource utilization.
Secure Connectivity Ensure secure communications between site-to-site and remote users with IPsec and SSL VPN. Offering multiple connectivity methods (including Check Point’s VPN clients, SSL and mobile clients), The 1100 Appliances ensures secure connectivity wherever you go.
VPN Configuration for 1100 Appliance
Anti-Malware Dynamic Protection The 1100 Appliance’s enhanced Antivirus Software Blade uses real-time virus signatures and anomaly-based protections from ThreatCloud™, the first collaborative network to fight cybercrime, to detect and block malware at the gateway before users are affected.
Anti-Spam and Messaging Security Check Point’s Anti-Spam and Email Security Software Blade provides a comprehensive, multidimensional approach to protect the email infrastructure—providing highly accurate anti-spam protection and defending organizations from a wide variety of virus and malware threats delivered within email.

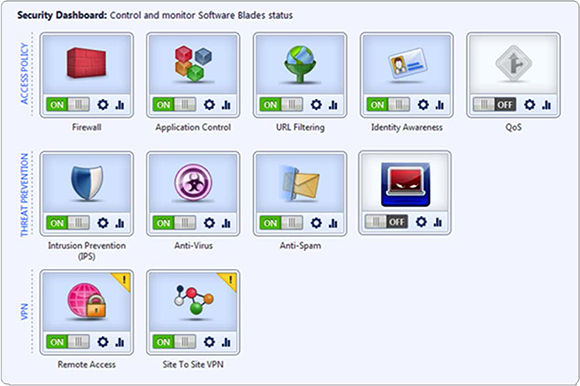

Local Management A simple Web-based management interface allows administrators to secure a small business in minutes. The setup wizard enables a pre-set security policy. Customize the device configuration and security policy with the web-based management interface. Monitor the device and security with easy-to-understand logs and reports.
Easy and Intuitive Local Management
Central Management Administrators can define security policy for the entire network—including internal security, main sites, and remote sites—from a single, centrally located Check Point Security Management server.

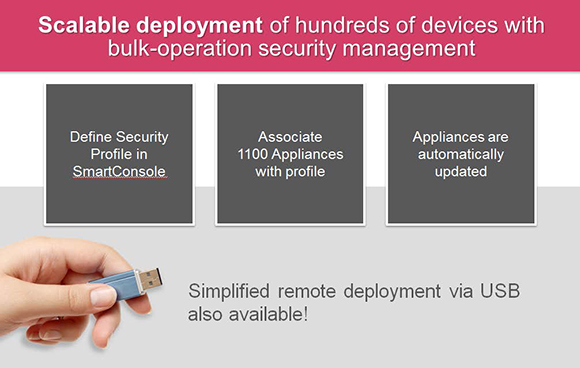

With SmartProvisioning™, a profile-based management approach designed for large-scale deployments, administrators can define a single security and device profile and apply it simultaneously to thousands of 1100 Appliances—dramatically reducing deployment time and administrative overhead.
It's as easy as 1, 2, 3.
- Define Security Profile in SmartDashboard
- Associate 1100 Appliances with the Profile
- Appliances are Automatically updated
Easy and Intuitive Local Management
New Optimized Hardware

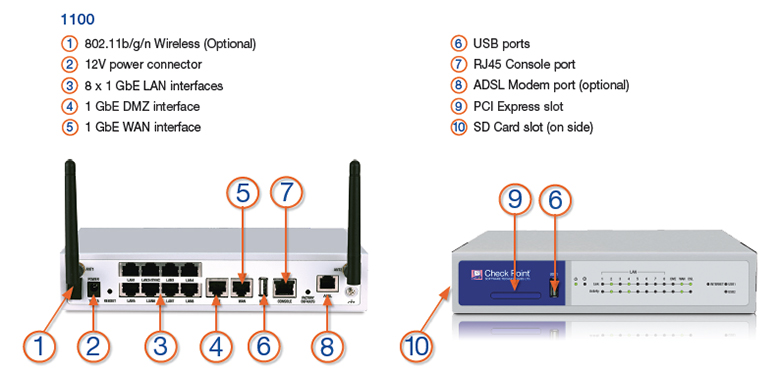

Ideal for Remote Office Networks 1100 Appliances are full-fledged network routers that include a LAN Switch and a dedicated DMZ and WAN port. The optional integrated ADSL modem eliminates the need for a separate external ADSL modem.
1100 Appliances also include a USB and PCI Express card slot that allows administrators to plug in a compatible third party 3G modem, providing an additional WAN connectivity or a redundant Internet link for maximum reliability.
Secure Wireless Connectivity The 1100 Wireless Appliances include a WIFI access point (802.11b/g/n) that supports WEP, WPA and WPA2 authentication.
Embedded GAiA—The Unified Security OS Check Point GAiA™ is the next generation Secure Operating System for all Check Point appliances, open servers and virtualized gateways. GAiA combines the best features from IPSO and SecurePlatform into a single unified OS providing greater efficiency and robust performance. GAiA secures IPv4 and IPv6 networks supporting complex network environments by supporting dynamic routing protocols like RIP, OSPF, BGP, PIM (sparse and dense mode) and IGMP.
|1120 Product Comparision|
|1120 NGTP Wireless||1120 FW Wireless||1120 NGTP||1120 FW|
|Advanced Networking & Clustering Software Blade|
|Antivirus and Anti Malware|
|Anti Spam and Email Security|
|Firewall Throughput||750 Mbps||750 Mbps||750 Mbps||750 Mbps|
|IPS Throughput||720 Mbps (Default)/ 100 Mbps (Recommended)||720 Mbps (Default)/ 100 Mbps (Recommended)||720 Mbps (Default)/ 100 Mbps (Recommended)||720 Mbps (Default)/ 100 Mbps (Recommended)|
|Network Location||Branch / Internet Edge, Small Office||Branch / Internet Edge, Small Office||Branch / Internet Edge, Small Office||Branch / Internet Edge, Small Office|
|Firewall Throughput (Mbps)||Up to 3501|
|Firewall and IPS Throughput (Mbps)||Up to 301|
|RFC 3511, 2544, 2647, 1242 Performance Tests (LAB)|
|Recommended Users||Up to 10||Up to 25||Up to 50|
|Firewall, 1518 byte UDP (Mbps)||750||1,000||1,500|
|VPN, AES-128 (Mbps)||140||175||220|
|IPsec VPN Tunnels||980||980||980|
|Connections per Second, 64 byte HTTP response||5,000||5,000||5,000|
|Concurrent Connections, 64 byte HTTP response||200,000||200,000||200,000|
|1GbE LAN Interface||8||8||8|
|1GbE WAN Interface||1||1||1|
|1GbE DMZ Interface||1||1||1|
|3G Modem Support||Yes||Yes||Yes|
|PCI Express Slot||1||1||1|
|SD Memory Card Slot||1||1||1|
|Dimensions WxDxH (Standard)||22 x 4.4 x 15.24 cm|
|Dimensions WxDxH (Metric)||8.75 x 1.75 x 6 in|
|Weight||1.2 kg (2.65 lbs)|
|AC Input||110 – 240 VAC, 50 – 60 Hz|
|Power Supply Rating||12/2A DC 24W (Wired Models)
12/2.5A DC 24W (ADSL & Wireless Models)
|Power Consumption (Max)||16.68 W|
|Thermal Input (Max)||56.9 BTU|
FCC: FCC P15B+ICES-003-ITE
1Sizing recommendation based on number of users
|Advanced Networking & Clustering|
|Anti-Spam & Email Security||*|
|NGFW = Next Generation Firewall; NGTP = Next Generation Threat Prevention
* - Optional
1 SSL VPN Portal is not supported
Download the Check Point 1100 Appliance Datasheet (PDF).
Download the Check Point Appliance Comparison Chart (PDF).
Download the Check Point New Appliances Brochure (PDF).
- Pricing and product availability subject to change without notice.
- Appliances license cannot be used on any other system other than the dedicated appliance.
- When building a cluster configuration, all cluster members must be of the same appliance.
- All 1120 appliances include Firewall, VPN, Advanced Network & Clustering blades, Identity Awareness and Mobile Access (for 5 users) blades.
- Pre-packaged blades are not accumulative and cannot be extracted from the appliance.
- The software license for the 1100 appliance is generated based on the system s unique MAC address (not the IP address assigned to the system).
- License includes support for central or local management.
- Hardware warranty is for 1 year.
- Recommended for up to 10 users with all Next Generation Threat Prevention blades enabled.
- On site RMA services are not available on all 1100 appliance.
