Check Point 1500 Security Appliances
Advanced Security, Uncompromising Performance

Check Point 1500 Security Appliances

Check Point 1500 Series Next Generation Firewall offer high performance, integrated devices offering firewall, VPN, antivirus, application visibility and control, URL filtering, email security and SandBlast Zero-Day Protection, all in a compact desktop form factor that is simple to configure and manage.

Check Point 1500 Model Lineup:

Wired Appliance

Check Point 1530 Appliance

1000 Mbps Firewall Throughput
350 Mbps Threat Prevention Throughput
1x WAN, 5x LAN switch ports
17.92W Power Consumption (Max)

Check Point 1550 Appliance

1000 Mbps Firewall Throughput
450 Mbps Threat Prevention Throughput
1x WAN, 5x LAN switch ports
17.92W Power Consumption (Max)

Check Point 1570 Appliance

2,800 Mbps Firewall Throughput
500 Mbps Threat Prevention Throughput
1x WAN, 5x LAN switch ports
26.01W Power Consumption (Max)

Check Point 1590 Appliance

2,800 Gbps Firewall Throughput
500 Mbps Threat Prevention Throughput
1x WAN, 1x DMZ, 8x LAN switch ports
26.01W Power Consumption (Max)

Wireless Appliance

Check Point 1530W Appliance

1000 Mbps Firewall Throughput
350 Mbps Threat Prevention Throughput
1x WAN, 5x LAN switch ports
21.95W Power Consumption (Max)

Check Point 1550W Appliance

1000 Mbps Firewall Throughput
450 Mbps Threat Prevention Throughput
1x WAN, 5x LAN switch ports
21.95W Power Consumption (Max)

Check Point 1570W Appliance

2,800 Gbps Firewall Throughput
500 Mbps Threat Prevention Throughput
1x WAN, 1x DMZ, 8x LAN switch ports
100.66W Power Consumption (Max)

Check Point 1590W Appliance

2,800 Gbps Firewall Throughput
500 Mbps Threat Prevention Throughput
1x WAN, 1x DMZ, 8x LAN switch ports
31.28W Power Consumption (Max)

Small Business Security

Check Point Small Business Appliances are high performance, integrated devices offering firewall, VPN, antivirus, application visibility and control, URL filtering, email security and SandBlast ZeroDay Protection, all in compact form factors that are simple to configure and manage.

Check Point 1500 Series Small Business Appliances Wi-Fi and Wired

Overview:

The Small Business Challenge

Advanced security, uncompromising performance

The Check Point 1500 Security Appliance family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions to protect small business employees, networks and data from cyber-theft.

The 1500 Security Gateways offer integrated, multi-layered security in a compact desktop form factor. Setup can be done in minutes using pre-defined security policies and our step-by-step configuration wizard. Check Point 1500 Security Gateways are conveniently manageable both locally via a Web interface and centrally by means of a cloud-based Check Point Security Management Portal (SMP) or R80 Security Management. Available in two security appliances, the 1550 and the 1590.

Empowering Small and Midsize businesses with Enterprise Grade Security

Secure

100% block rate, recommended by NSS for
prevention, powered by R80

Powerful

2x more performance with up to 4 Gbps
Firewall and 660 Mbps of full Threat Prevention

Simple

Out-of-the-box Zero Touch provisioning, mobile
app for security on the go and a unified
management portal

1550/1550W Model Specifications:

Check Point 1500 Small Business Appliances Wired & Wi-Fi

Enterprise Testing Conditions	1550/1550W
Threat Prevention (Mbps)¹	450
Next Generation Firewall²	800
IPS Throughput (Mbps)	900
Firewall Throughput (Mbps)	1,000
RFC 3511, 2544, 2647, 1242 Performance (LAB)
Firewall 1518 Byte UDP Packets (Mbps)	2,000
VPN AES-128 Throughput(Mbps)	1,300
Connections per Second	14,000
Concurennt Connections	500,000
Software
Security	Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)
Unicast, Multicast Routing	OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP
Mobile Access License (Users)	100 remote SNX or Mobile VPN client users
Hardware
WAN Port	1x 10/100/1000Base-T RJ-45 port
LAN Port	5x 10/100/1000Base-T RJ-45 ports
Wi-Fi (1550W Model Only)	802.11 b/g/n/ac MIMO 3x3
Radio Band (association rate)	3x3 Dual band 2.4/5GHz, 11n/ac non-concurrent
Radio Band (association rate)	One radio band non-concurrent: 2.4GHz (max 450 Mbps) or 5GHz (max 1,300 Mbps)
Console Port	1x USB-C
USB Port	1x USB 3.0
Dimensions
Enclosure	Desktop, wall mount
Dimensions (W x D x H)	210 x 160 x 37.5 mm, 8.3 x 6.3 x 1.5 in.
Weight	0.43 kg (0.95 lbs.)
Environment
Operating / Storage	0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
Power Requirements
AC Input	110 – 240VAC, 50 – 60 Hz
Power Supply Rating	12V/3.3A 40W power adapter (non-Wi-Fi), 12V/5A 60W power adapter (Wi-Fi)
Power Consumption (Max)	17.92 (non-Wi-Fi); 21.95W (Wi-Fi)
Heat Dissipation	61.11(non-Wi-Fi); 74.85(Wi-Fi)
Certifications
Safety/Emissions/Environment	UL/c-UL 62368-1 , IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, RSS247 FCC: Part 15 Class B, C, E / RoHS, REACH, WEEE

Notes:
¹ performance measured with a real-world SMB HTTP traffic blend, a typical rule-base, NAT, logging and the most secure threat prevention

1590/1590W Model Specifications:

Enterprise Testing Conditions	1570/1570W/1590/1590W
Threat Prevention (Mbps)¹	660
Next Generation Firewall²	1,300
IPS Throughput (Mbps)	1,400
Firewall Throughput (Mbps)	2,800
RFC 3511, 2544, 2647, 1242 Performance (LAB)
Firewall 1518 Byte UDP Packets (Mbps)	6,400
VPN AES-128 Throughput(Mbps)	2,600
Connections per Second	21,100
Concurennt Connections	500,000
Software
Security	Firewall, VPN, User Awareness, QoS, Application Control, URL Filtering, IPS, Anti-Bot, Antivirus, Anti-Spam and SandBlast Threat Emulation (sandboxing)
Unicast, Multicast Routing	OSPFv2, BGPv4 and 4++, RIP, PIM (SM, DM, SSM), IGMP
Mobile Access License (Users)	200 remote SNX or Mobile VPN client users
Hardware
WAN Port	1x 10/100/1000Base-T RJ-45 port
DMZ Port	1x 10/100/1000Base-T RJ-45 / 1x 1000BaseF SFP port (transceiver not included)
LAN Port	8x 10/100/1000Base-T RJ-45 ports
Wi-Fi (optional)	802.11 b/g/n and 802.11 n/ac wave II MIMO 4x4
Radio Band (association rate)	Two radio bands concurrent: 2.4GHz (max 450 Mbps) and 5GHz (max 1,700 Mbps)
3/4G/LTE (optional)	3/4G/LTE Embedded modem, CAT6 with Main and Auxiliary antennas
SIM (optional)	Dual SIM (Nano and Micro)
Console Port	1x USB-C
USB Port	1x USB 3.0
SD Card Slot	Micro-SD slot
Dimensions
Enclosure	Desktop
Dimensions (W x D x H)	210 x 170 x 42 mm, 8.3 x 6.7 x 1.7 in.
Weight	0.87 kg (1.9 lbs.)
Environment
Operating / Storage	0ºC ~ 40ºC / -45ºC ~ 60ºC (5~95%, non-condensing)
Power Requirements
AC Input	110 – 240VAC, 50 – 60 Hz
Power Supply Rating	12V/3.3A 40W power adapter (non-Wi-Fi), 12V/5A 60W power adapter (Wi-Fi and Wi-Fi-LTE)
Power Consumption (Max)	26.01 (non-Wi-Fi); 31.28W (Wi-Fi); 35.5W (Wi-Fi-LTE)
Heat Dissipation	88.70 (non-Wi-Fi); 100.66 (Wi-Fi), 106.73 (Wi-Fi-LTE); 121.06 (Wi-Fi-LTE)
Certifications
Safety/Emissions/Environment	UL/c-UL, CB IEC, CE LVD 62368-1, CE \| VCCI, AS/NZS, FCC, IC Class B, FCC, IC, AS/NZS, CE RED ETSI \| RoHS, REACH, WEEE

Notes:
¹ performance measured with a real-world SMB HTTP traffic blend, a typical rule-base, NAT, logging and the most secure threat prevention

Comprehensive Protection

Next Generation Firewall
Site-to-Site VPN
Remort Access VPN
Application Control and Web Filtering
loT Device Recognition
Intrusion Prevention
Antivirus
Anti-Bot
Anti-Spam
SandBlast Threat Emilation (sandboxing)

Check Point 1590 Appliance Simple Intuitive Comprehensive

Simple Intuitive Monitoring & Reporting

The web interface shows logs, active computers, and hourly, daily, weekly and monthly reports. In network analysis find top applications and users consuming the most bandwidth. Security analysis shows users visiting high-risk sites and using high-risk applications. Also see any incidents or infected hosts found during the reporting period.

R80 Software for SMB Appliances

R80 software for SMB on the 1500 increases performance and brings enterprise-grade security to small and medium size businesses. Centrally managed 1500 gateways support:

Unified access policy: firewall, application control, URLF
Policy layers and sub-policies
Acceleration of Domain, Dynamic and Time objects
Multicore VPN and VPN acceleration

Step Up To 5^th Generation Cyber Security

Gen V security leaves the patch work and best-of-breed deployments of the past behind. Instead, it’s characterized by an architecture that unifies all networks, cloud, and mobile, and supported by real
time threat intelligence.

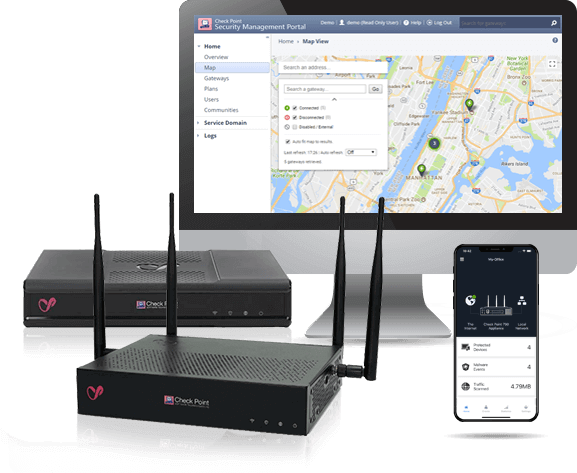

Zero-touch Deployment, Cloud Management

An intuitive web-based user interface, enables managed service providers to provision security efficiently for small businesses. In addition cloudhosted Security Management Portal scales to manage over 100,000 Check Point Small Business Appliances. End users can leave security to a managed service provider (MSP) so they can focus on growing their own business

WatchTower Security Management App

The intuitive mobile app provides real-time monitoring of network events, alerts you when your network is at risk, enables you to quickly block security threats, and configure the security policy for multiple gateways.

Network Security Snapshot	View devices connected to your network and any potential security threats
Real-time security alerts	Real-time notifications of malicious attacks or unauthorized device connections
On-the-spot threat mitigation	Quickly block malware-infected devices and view infection details for further investigation
Customized security event notifications	Customize notifcations for your top-priority security events
Network security event feed	View all security events by category and drill down for further information
Network statistic reports and charts	Gain insights on network usage patterns
Easily manage multiple gateways	Configure the security settings for multiple gateways
Advanced policy configuration	Manage advanced security policy settings securely via a web interface
New Threat Prevention Control	The Unified Threat Prevention policy is easy and intuitive to set and conrtol.
New SSL Inspection Enforcement	R80 for SMB simultaneously supports light SSL and full SSL inspection. Additional ciphers support improves HTTPS inspection.

Documentation:

Download the Check Point 1500 Security Appliances Datasheet (.PDF)

Check Point 1500 Security Appliances Advanced Security, Uncompromising Performance
