Check Point 2200 Appliance
Branch & Small Office Solution – Enterprise security in a desktop package

Overview:

Today the Internet gateway is more than a firewall. It is a security device presented with an ever-increasing number of sophisticated threats. As a security gateway it must use multiple technologies to control network access, detect sophisticated attacks and provide additional security capabilities like data loss prevention and protection from web-based threats. The proliferation of mobile devices like smartphones and Tablets and new streaming, social networking and P2P applications requires a higher connection capacity and new application control technologies. Finally, the shift towards enterprise private and public cloud services, in all its variations, changes the company borders and requires enhanced capacity and additional security solutions.

Check Point’s new appliances combine fast networking technologies with high performance multi-core capabilities—providing the highest level of security without compromising on network speeds to keep your data, network and employees secure. Optimized for the Software Blades Architecture, each appliance is capable of running any combination of Software Blades—providing the flexibility and the precise level of security for any business at every network location by consolidating multiple security technologies into a single integrated solution.

Each Check Point Appliance supports the Check Point 3D security vision of combining policies, people and enforcement for unbeatable protection and is optimized for enabling any combination of the following Software Blades: (1) Firewall, (2) VPN, (3) IPS, (4) Application Control, (5) Mobile Access, (6) DLP, (7) URL Filtering, (8) Antivirus, (9) Anti-spam, (10) Identity Awareness and (11) Advanced Networking and Clustering.

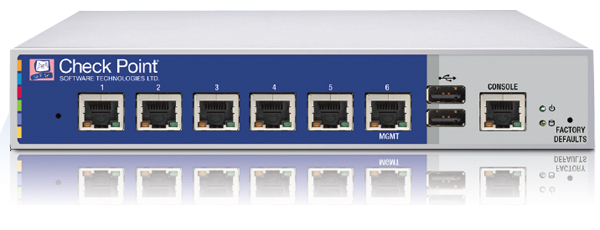

Check Point 2200 Appliance

The Check Point 2200 Appliance is a compact desktop box using multi-core technology. The 2200 offers six onboard 1 Gigabit copper Ethernet ports for high network throughput. Despite its small form factor, this powerful appliance provides a respectable 114 SecurityPower Units, firewall throughput of 3 Gbps and IPS throughput of more than 2 Gbps, enabling security for small branch offices, providing an effective and affordable all-in-one security solution.

Key Features

• 114 SecurityPower™
• 3 Gbps of firewall throughput
• 2 Gbps of IPS throughput
• 6 10/100/1000Base-T ports
• Desktop form factor

Key Benefits

• Trusted by 100% of the Fortune 100
• All-inclusive security appliance
• Unified management console
• Ensures data security with VPN
• Extensible Software Blade Architecture

Gateway Software Blades
	FW	NGFW	NGDP	NGTP
Firewall
IPsec VPN
Mobile Access (5 users)
Advanced Networking & Clustering
Identity Awareness
IPS	*
Application Control	*
Data Loss Prevention	*	*		*
URL Filtering	*	*	*
Antivirus	*	*	*
Anti-spam	*	*	*
Anti-bot	*	*	*

* Optional

Key Features:

SecurityPower™
Until today security appliance selection has been based upon selecting specific performance measurements for each security function, usually under optimal lab testing conditions and using a security policy that has one rule. Today customers can select security appliances by their SecurityPower™ ratings which are based on real-world customer traffic, multiple security functions and a typical security policy.

SecurityPower is a new benchmark that measures the capability and capacity of an appliance to perform multiple advanced security functions (Software Blades) such as IPS, DLP and Application Control in real world traffic conditions. This provides an effective metric to better predict the current and future behavior of appliances under security attacks and in day-to-day operations. Customer SecurityPower Unit (SPU) requirements, determined using the Check Point Appliance Selection Tool, can be matched to the SPU ratings of Check Point Appliances to select the right appliance for their specific requirements.

All-inclusive security soultion
The Check Point 2200 Appliance offers a complete and consolidated security solution in a desktop form factor. Based on the Check Point Software Blade architecture, this appliance is available in four Software Blade packages and extensible to include additional Software Blades for further security protection.

• Firewall (FW): create user-based access control and secure connections to corporate networks for remote and mobile users, branch offices and business partners with IPsec VPN.
• Next Generation Firewall (NGFW): identify and control applications by user and scan content to stop threats—with IPS and Application Control.
• Next Generation Data Protection (NGDP): preemptively protect sensitive information from unintentional loss, educate users on proper data handling policies and empower them to remediate incidents in real-time—with IPS, Application Control and DLP.
• Next Generation Threat Prevention (NGTP): apply multiple layers of protection to prevent sophisticated cyber-threats— with IPS, Application Control, Antivirus, Anti-Bot, URL Filtering and Email Security.

Integrated Security Management
The appliance can either be managed locally with its available integrated security management or via central unified management. Using local management, the appliance can manage itself and one adjacent appliance for high availability purposes.

GAiA - The Unified Security OS
Check Point GAiA™ is the next generation Secure Operating System for all Check Point appliances, open servers and virtualized gateways. GAiA combines the best features from IPSO and SecurePlatform into a single unified OS providing greater efficiency and robust performance. By upgrading to GAiA, customers will benefit from improved appliance connection capacity and reduced operating costs. With GAiA, customers will gain the ability to leverage the full breadth and power of all Check Point Software Blades. GAiA secures IPv4 and IPv6 networks utilizing the Check Point Acceleration and Clustering technology and it protects the most complex network environments by supporting dynamic routing protocols like RIP, OSPF, BGP, PIM (sparse and dense mode) and IGMP. As a 64-Bit OS, GAiA increases the connection capacity of select appliances.

GAiA simplifies management with segregation of duties by enabling role-based administrative access. Furthermore, GAiA greatly increases operation efficiency by offering Automatic Software Updates. The intuitive and feature-rich Web interface allows for instant search of any commands or properties. GAiA offers full compatibility with IPSO and SecurePlatform command line interfaces, making it an easy transition for existing Check Point customers.

Technical Specifications:

Base Configuration 6 x 10/100/1000Base-T RJ45 ports 250 GB hard disk drive External AC to DC power adaptor Production Performance1 114 SecurityPower 1.4 Gbps firewall throughput 150 Mbps firewall and IPS throughput RFC 3511, 2544, 2647, 1242 Performance Tests (LAB) 3 Gbps of firewall throughput, 1518 byte UDP 400 Mbps of VPN throughput, AES-128 2 Gbps of IPS throughput, Default IPS profile, IMIX traffic blend 300 Mbps of IPS throughput, Recommended IPS profile, IMIX traffic blend 1.2 million concurrent connections, 64 byte HTTP response 25,000 connections per second, 64 byte HTTP response Network Connectivity IPv4 and IPv6 1024 VLANs 256 VLANs per interface 802.3ad passive and active link aggregation Layer 2 (transparent) and Layer 3 (routing) mode High Availability Active/Active - L3 mode Active/Passive - L3 mode Session synchronization for firewall and VPN Session failover for routing change Device failure detection ClusterXL or VRRP Link failure detection

Virtual Systems Max VSs: 3 Dimensions Enclosure: Desktop Standard (W x D x H): 8.27 x 8.25 x 1.65 in. Metric (W x D x H): 210 x 209.5 x 42 mm Weight: 2.0 kg (4.4 lbs.) Power Requirements AC Input Voltage: 100 - 240V Frequency: 50 - 60 Hz Single Power Supply Rating: 40 W Power Consumption Maximum: 35 W Maximum thermal output: 119.4 BTU Operating Environmental Conditions Temperature: 32° to 104°F / 0° to 40°C Humidity: 20% - 90% (non-condensing) Storage Environmental Conditions Temperature: –4° to 158°F / –20° to 70°C Humidity: 5% - 95% @ 60°C (non-condensing) Certifications Safety: CB, UL/cUL, CSA, TUV, NOM, CCC, IRAM, PCT/GoST Emissions: FCC, CE, VCCI, C-Tick, CCC, ANATEL, KCC Environmental: RoHS

¹Maximum production performance based upon the SecurityPower benchmark. Real-world traffic, Multiple Software Blades, Typical rule-base, NAT and Logging enabled. Check Point recommends 50% SPU utilization to provide room for additional Software Blades and future traffic growth. Find the right appliance for your performance and security requirements using the Appliance Selection Tool.

Software Blade	FW	NGFW	NGDP	NGTP	NGTX
Firewall
Identity Awareness
IPSec VPN
Advanced Networking & Clustering
Mobile Access1
IPS	*
Application Control	*
DLP	*	*		*	*
URL Filtering	*	*	*
Antivirus	*	*	*
Anti-Spam & Email Security	*	*	*
Anti-Bot	*	*	*
Threat Extraction	*	*	*	*
Threat Emulation	*	*	*	*
Management Blades
Network Policy Management
Logging and Status
SmartEvent	*	*	*	*	*
SmartWorkflow	*	*	*	*	*
Monitoring	*	*	*	*	*
Management Portal	*	*	*	*	*
User Directory	*	*	*	*	*
SmartProvisioning	*	*	*	*	*
SmartReporter	*	*	*	*	*
Endpoint Policy Management	*	*	*	*	*
Compliance	*	*	*	*	*
NGFW  = Next Generation Firewall;    NGDP  = Next Generation Data Protection;   NGTP = Next Generation Threat Prevention - Included * - Optional 1 Five users are included in default package

Documentation:

Download the Check Point 2200 Appliance Datasheet (PDF).

Download the Check Point Appliance Comparison Chart (PDF).

Download the Check Point New Appliances Brochure (PDF).
