Check Point 4600 Appliance
Enterprise-grade security appliance (374 SPU/9Gbps)—fast networking and fiber and copper connectivity options

Check Point 4600 Appliance

Sorry, this product is no longer available, Please, contact us for a replacement product!

Click here to jump to more pricing!

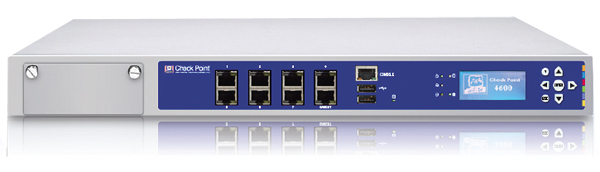

The Check Point 4600 Appliance offers a complete and consolidated security solution, with leading performance in a 1U form factor.

In addition to eight onboard 1 Gigabit copper Ethernet ports, the 4600 also comes with an available expansion slot for the option of adding four 1 Gigabit copper or 2 or 4 fiber Ethernet ports. With 374 SecurityPower Units, max firewall throughput of over 9 Gbps and IPS performance up to 4 Gbps the 4600 is capable of securing any small to mid-size office.

Check Point 4600 Appliance

Today the enterprise gateway is more than a firewall. It is a security device presented with an ever-increasing number of sophisticated threats. As an enterprise security gateway it must use multiple technologies to control network access, detect sophisticated attacks and provide additional security capabilities like data loss prevention and protection from web-based threats. The proliferation of mobile devices like smartphones and Tablets and new streaming, social networking and P2P applications requires a higher connection capacity and new application control technologies. Finally, the shift towards enterprise private and public cloud services, in all its variations, changes the company borders and requires enhanced capacity and additional security solutions.

Check Point’s new appliances combine fast networking technologies with high performance multi-core capabilities—providing the highest level of security without compromising on network speeds to keep your data, network and employees secure. Optimized for the Software Blades Architecture, each appliance is capable of running any combination of Software Blades—providing the flexibility and the precise level of security for any business at every network location by consolidating multiple security technologies into a single integrated solution.

Each Check Point Appliance supports the Check Point 3D security vision of combining policies, people and enforcement for unbeatable protection and is optimized for enabling any combination of the following Software Blades: (1) Firewall, (2) VPN, (3) IPS, (4) Application Control, (5) Mobile Access, (6) DLP, (7) URL Filtering, (8) Antivirus, (9) Anti-spam, (10) Anti-Bot, (11) Identity Awareness and (12) Advanced Networking & Clustering.

Key Features

  • 374 SecurityPower™
  • 9 Gbps of firewall throughput
  • 4 Gbps of IPS throughput
  • Up to 12 10/100/1000Base-T ports
  • Up to 4 1GbE Fiber ports
  • 1 rack unit appliance

Key Benefits

  • Entry level, enterprise-grade appliance
  • Delivers everything you need to secure your network in one appliance
  • Simplifies administration with a single integrated management console
  • Ensures data security for remote access and site-to-site communications
  • Provides comprehensive security and protects against emerging threats with Extensible Software Blade Architecture
* Optional

Key Features:

Until today security appliance selection has been based upon selecting specific performance measurements for each security function, usually under optimal lab testing conditions and using a security policy that has one rule. Today customers can select security appliances by their SecurityPower ratings which are based on real-world customer traffic, multiple security functions and a typical security policy.

SecurityPower is a new benchmark that measures the capability and capacity of an appliance to perform multiple advanced security functions (Software Blades) such as IPS, DLP and Application Control in real world traffic conditions. This provides an effective metric to better predict the current and future behavior of appliances under security attacks and in day-to-day operations. Customer SecurityPower Unit (SPU) requirements, determined using the Check Point Appliance Selection Tool, can be matched to the SPU ratings of Check Point Appliances to select the right appliance for their specific requirements.

All-inclusive Security Solution
The Check Point 4600 Appliance offers a complete and consolidated security solution in a 1U form factor based on the Check Point Software Blade architecture. Available in three software packages of 7, 8 and 10 Blades, the platform provides up-to-date and extensible security protection.

  • Next Generation Firewall (NGFW): identify and control applications by user and scan content to stop threats—with IPS and Application Control.
  • Secure Web Gateway (SWG): enables secure use of Web 2.0 with real time multi-layered protection against web-borne malware—with Application Control, URL Filtering, Antivirus and SmartEvent.
  • Next Generation Data Protection (NGDP): preemptively protect sensitive information from unintentional loss, educate users on proper data handling policies and empower them to remediate incidents in real-time—with IPS, Application Control and DLP..
  • Next Generation Threat Prevention (NGTP): apply multiple layers of protection to prevent sophisticated cyber-threats— with IPS, Application Control, Antivirus, Anti-Bot, URL Filtering and Email Security.

Integrated Security Management
The appliance can either be managed locally with its available integrated security management or via central unified management. Using local management, the appliance can manage itself and one adjacent appliance for high availability purposes.

Remote Access Connectivity for Mobile Devices
Each appliance arrives with mobile access connectivity for 5 users, using the Mobile Access Blade. This license provides secure remote access to corporate resources from a wide variety of devices including smartphones, tablets, PCs, Mac and Linux.

GAiA - The Unified Security OS

Check Point GAiA™ is the next generation Secure Operating System for all Check Point appliances, open servers and virtualized gateways. GAiA combines the best features from IPSO and SecurePlatform into a single unified OS providing greater efficiency and robust performance. By upgrading to GAiA, customers will benefit from improved appliance connection capacity and reduced operating costs. With GAiA, customers will gain the ability to leverage the full breadth and power of all Check Point Software Blades. GAiA secures IPv4 and IPv6 networks utilizing the Check Point Acceleration & Clustering technology and it protects the most complex network environments by supporting dynamic routing protocols like RIP, OSPF, BGP, PIM (sparse and dense mode) and IGMP. As a 64-Bit OS, GAiA increases the connection capacity of select appliances.

GAiA simplifies management with segregation of duties by enabling role-based administrative access. Furthermore, GAiA greatly increases operation efficiency by offering Automatic Software Updates. The intuitive and feature-rich Web interface allows for instant search of any commands or properties. GAiA offers full compatibility with IPSO and SecurePlatform command line interfaces, making it an easy transition for existing Check Point customers.

Product Comparison:

Hardware Specifications

  4200 4400 4600 4800
SecurityPower1 114 223 374 623
Firewall Throughput 3Gbps 5Gbps 9Gbps 11Gbps
VPN Throughput 0.4Gbps 1.2Gbps 1.5Gbps 2Gbps
IPS Throughput (Default / Recommended Profile) 2Gbps / 0.3Gbps 3.5Gbps / 0.7Gbps 4Gbps / 1Gbps 6Gbps / 1.5Gbps
Concurrent Sessions 1.2M 1.2M 1.2M 3.3M2
Connections per Second 25K 40K 50K 70K
VLANS 1024 1024 1024 1024
Virtual Systems
Max VS Supported (Default/Max) 3 / 3 10 / 10 10 / 10 25 / 25
Hardware Specifications
10/100/1000Base-T Ports 4 to 8 8 to 12 8 to 12 8 to 16
1000Base-F SFP Ports 0 to 4 0 to 4 0 to 4 0 to 4
10GBase-F SFP+ Ports NA NA NA 0 to 2
Memory 4GB 4GB 4GB 4GB / 8GB
Storage 250GB
LOM NA NA NA Included
Enclosure 1U
Dimensions WxDxH (standard) 17.25 x 12.56 x 1.73 in. 17.25 x 16.14 x 1.73 in.
Dimensions WxDxH (metric) 438 x 319 x 44 mm 438 x 410 x 44 mm
Weight 4.0 kg (8.82 lbs.) 7.5 kg (16.53 lbs.) 7.6 kg (16.76 lbs.)
Operating Environment Temperature: 32° to 104°F / 0° to 40°C; Relative Humidity 20% to 90% (non-condensing)
Non-Operating Environment Temperature: 14° to 158°F / -20° to 70°C; Relative Humidity 5% to 95% (non-condensing)
Redundant Hot-Swap Power Supply NA NA NA Optional
Power Input 100~240V, 50~60Hz
Power Supply Spec (Max) 100W 250W 275W
Power Consumption (Max) 57W 90W 140W
Compliance CB/UL/cUL/CE/FCC/TUV/VCCI/C-Tick
1 Check Point's SecurityPower is a new benchmark metric that allows customers to select security appliances by their capacity to handle real-world network traffic, multiple security functions and a typical security policy. 2With memory upgrade and GAiA OS

Software Specifications

Identity Awareness
Advanced Networking & Clustering
Mobile Access 1 *
Application Control
DLP * * * *
URL Filtering * *
Antivirus  * *
Anti-Spam & Email Security * * *
Anti-Bot * * *
Threat Extraction * * * * * * * *
Management Blades
Network Policy Management
Logging and Status
SmartEvent * * * *
SmartWorkflow * * * * *
Monitoring * * * * *
Management Portal * * * * *
User Directory * * * * *
SmartProvisioning * * * * *
SmartReporter * * * * *
Endpoint Policy Management * * * * *
 Compliance * * * * *
NGFW  = Next Generation Firewall;    NGDP  = Next Generation Data Protection;   NGTP = Next Generation Threat Prevention; NGSWG = Next Generation Secure Web Gateway
- Included
* - Optional
1 Five users are included in default package

Technical Specifications:

Check Point 4600 Appliance

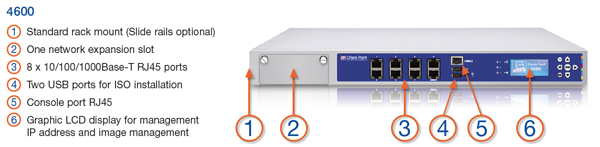

Base Configuration

  • 8 x 10/100/1000Base-T RJ45 ports
  • 250 GB hard disk drive
  • One AC power supply
  • Standard rack mount

Network Expansion Slot Options (1 slot)

  • 4 x 10/100/1000Base-T RJ45 ports
  • 2 x 1000Base-F SFP ports 1
  • 4 x 1000Base-F SFP ports
  • 4 x 10/100/1000Base-T Fail-Open NIC
  • 4 x 1000Base-F SX or LX Fail-Open NIC

Max Configuration

  • 12 x 10/100/1000Base-T RJ45 ports
  • 8 x 10/100/1000Base-T RJ45 + 4 x 1000Base-F SFP ports

Production Performance1

  • 374 SecurityPower
  • 3.4 Gbps firewall throughput
  • 500 Mbps firewall and IPS throughput

RFC 3511, 2544, 2647, 1242 Performance Tests (LAB)

  • 9 Gbps of firewall throughput, 1518 byte UDP
  • 1.5 Gbps of VPN throughput, AES-128
  • 4 Gbps of IPS throughput, Default IPS profile, IMIX traffic blend
  • 1 Gbps of IPS throughput, Recommended IPS profile, IMIX traffic blend
  • 1.2 million concurrent connections, 64 byte HTTP response
  • 50,000 connections per second, 64 byte HTTP response

Network Connectivity

  • IPv4 and IPv6
  • 1024 VLANs
  • 256 VLANs per interface
  • 802.3ad passive and active link aggregation
  • Layer 2 (transparent) and Layer 3 (routing) mode


High Availability

  • Active/Active - L3 mode
  • Active/Passive - L3 mode
  • Session synchronization for firewall and VPN
  • Session failover for routing change
  • Device failure detection
  • Link failure detection
  • ClusterXL or VRRP

Virtual Systems

  • Max VSs: 10


  • Enclosure: 1U
  • Standard (W x D x H): 17.25 x 12.56 x 1.73 in.
  • Metric (W x D x H): 438 x 320 x 44 mm
  • Weight: 7.5 kg (16.53 lbs.)

Power Requirements

  • AC Input Voltage: 100 - 240V
  • Frequency: 50 - 60 Hz
  • Single Power Supply Rating: 250 W
  • Power Consumption Maximum: 90 W
  • Maximum thermal output: 240.1 BTU

Operating Environmental Conditions

  • Temperature: 32° to 104°F / 0° to 40°C
  • Humidity: 20% - 90% (non-condensing)

Storage Conditions

  • Temperature: –4° to 158°F / –20° to 70°C
  • Humidity: 5% - 95% @ 60°C (non-condensing)


  • Safety: CB, UL/cUL, CSA, TUV, NOM, CCC, IRAM, PCT/GoST
  • Emissions: FCC, CE, VCCI, C-Tick, CCC, ANATEL, KCC
  • Environmental: RoHS
1Maximum production performance based upon the SecurityPower benchmark. Real-world traffic, Multiple Software Blades, Typical rule-base, NAT and Logging enabled. Check Point recommends 50% SPU utilization to provide room for additional Software Blades and future traffic growth. Find the right appliance for your performance and security requirements using the Appliance Selection Tool.


Download the Check Point 4600 Appliance Datasheet (PDF).

Download the Check Point Appliance Comparison Chart (PDF).

Download the Check Point New Appliances Brochure (PDF).

Pricing Notes:

Check Point Products
Virtual Systems Packages
3 Virtual Systems package
- Available only for small Gateways: 2200, 4200, 4400, 4600, UTM-1 3070 and Open servers with less than 4 cores
List Price: $3,370.00
Our Price: $2,799.46
3 Virtual Systems package for HA/VSLS
- Available only for small Gateways: 2200, 4200, 4400, 4600, UTM-1 3070 and Open servers with less than 4 cores
List Price: $2,700.00
Our Price: $2,242.89
Additional Software Blades
Check Point Mobile Access blade for up to 50 concurrent connections
List Price: $1,730.00
Our Price: $1,437.11
Additional Software Blades for High Availability
Mobile Access Blade for up to 50 concurrent connections for High Availability
*The purchase of a Security Gateway container is required per user
List Price: $1,390.00
Our Price: $1,154.67
Annual Packages/Blades
Data Loss Prevention (DLP) Blade for 1 year - for small-size appliances
Our Price: $3,370.00
Anti-Spam and Email Security Blade for 1 year, for small-size appliances
Our Price: $1,690.00
Check Point IPS Blade for low-end gateways, 1 Year
*The purchase of a Security Gateway container is required per user
Our Price: $1,690.00
Annual Packages/Blades for High Availability
High Availability (HA) and SKUs for 2 and 3 years are available, contact us.
Data Loss Prevention (DLP) Blade for 1 year - for small-size appliances
Our Price: $2,700.00
Anti-Spam and Email Security Blade for 1 year, for small-size appliances
Our Price: $1,340.00
IPS Blade S for 1 year for low-end appliances pre-defined systems
Our Price: $1,340.00
