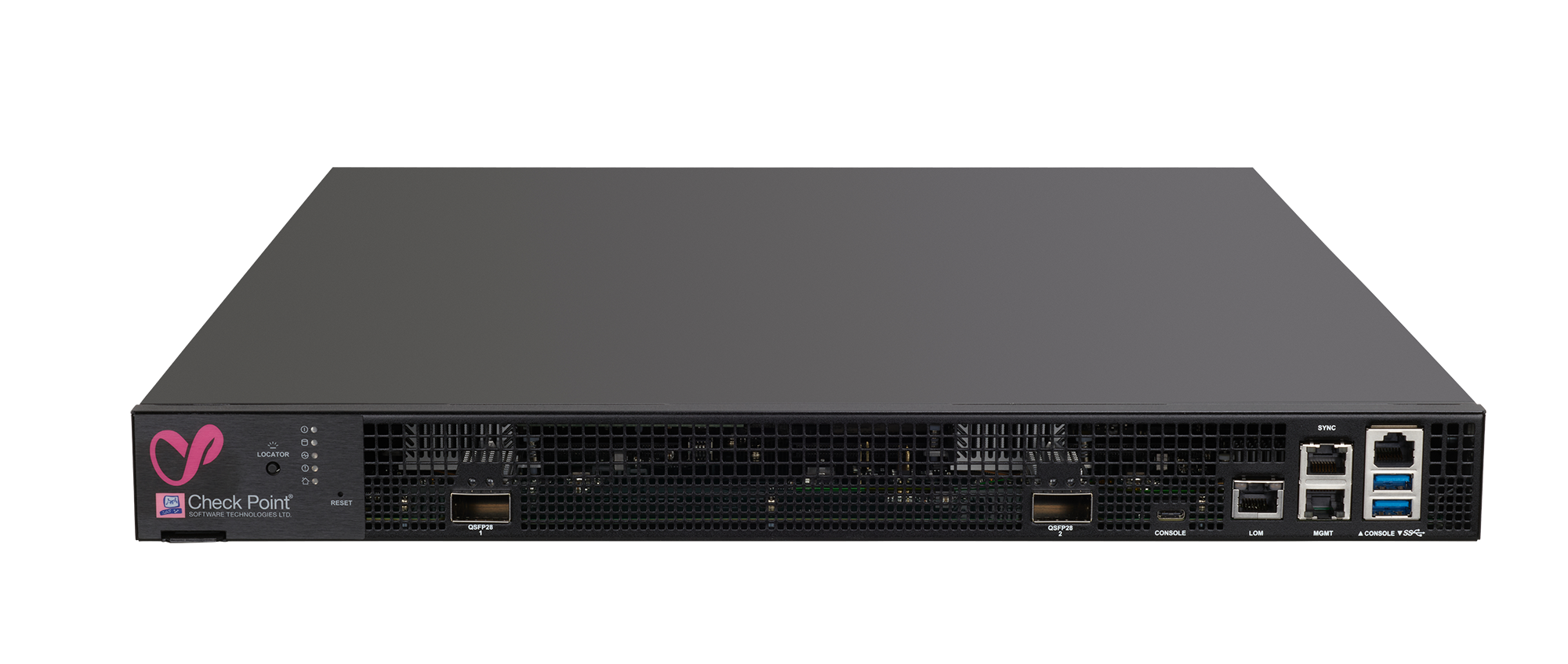

Check Point Quantum 28600 Hyperscale Security Gateway
Data Center and High-End Enterprise Security Gateways

Check Point Quantum 28600 Hyperscale Security Gateway



Check Point Products
Checkpoint Quantum 28600 Hyperscale Appliance
USA: FREE Ground ShippingCheck Point Quantum 28600 HyperScale Appliance with SandBlast subscription package for 1 year
#CPAP-SG28600-HS-SNBT
List Price: $220,000.00
USA: FREE Ground ShippingCheck Point Quantum 28600 HyperScale Appliance for Maestro including 2 100 GbE direct attach cables with SandBlast subscription package for 1 year
#CPAP-SG28600-HS-MHS-SNBT
List Price: $220,000.00

Overview:

Protecting the modern data center against GenV attacks requires high performance scalable security gateways that go beyond the NGFW to deliver the best threat prevention and optimization for hybrid cloud environments. Check Point 26000 and 28000 Quantum Security Gateways include award-winning SandBlast Network threat prevention, telco-grade reliability, and hyperscale threat prevention performance up to 1.5 Tera bps.

Check Point Maestro brings scale, agility and elasticity of the cloud on premise with efficient N+1 clustering based on Check Point HyperSync technology, maximizing the capabilities of your existing security gateways. Create your own virtualized private-cloud premise by stacking multiple Check Point security gateways together. Group them by security feature set, policy or the assets they protect and further virtualize them with virtual systems technology. With the Maestro Hyperscale Orchestrator and 28600 Hyperscale security gateways, businesses of all sizes can have cloud-level security on premise.

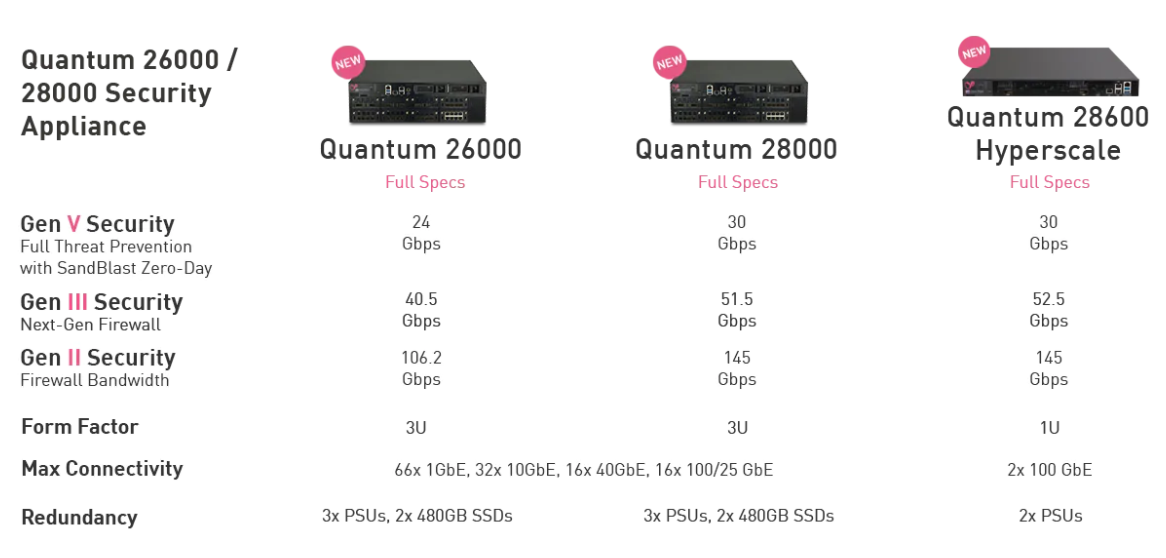

Quantum 26000, 28000 Security Gateways: Best Security, Ultimate Hardware

For ultimate data center security and scalability, the 26000 and 28000 models deliver 60 security services with telco-grade performance including 30 Gbps of threat prevention. Telco-grade hardware reliability and expandability includes 100% SSDs, the highest port density in the industry, modular expansion up to 16 x 100 GbE, green friendly with 2.5x the power efficiency than other vendors and unified policy management across the datacenter and the hybrid cloud.


Always Protected Against GenV Attacks

Always Protected Against GenV Attacks

Highest caliber prevention with unified security

Security at Hyperscale

Security at Hyperscale

On-demand expansion with Hyperscalability

Efficient Operations

Efficient Operations

Cut operation management time by up to 80%


Introducing New Quantum Security Gateways

All Quantum Security Gateways come with Check Point’s award-winning SandBlast Network right out of the box. Check Point protects enterprises from the 5th Generation of sophisticated multi-vector cyber attacks versus 3rd Generation of protection provided by other firewalls.

New Quantum Security Gateways

Features:

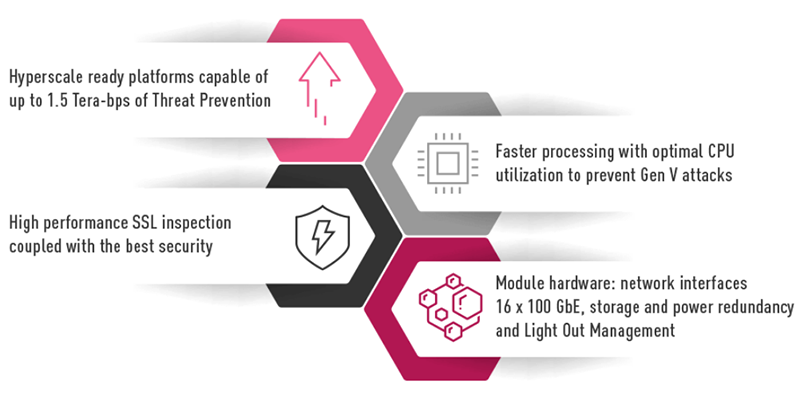

Data Center and High-End Enterprise Security Feature Benefits List



Hyperscale Security System

With Maestro, you can start with two gateways and then can grow to up to 52 gateways. For example, when you start with 30 Gbps using two 28600HS gateways you can finish with a 1.5 Tbps security solution that supports over 500 million concurrent connections. Simply by using Check Point Maestro.

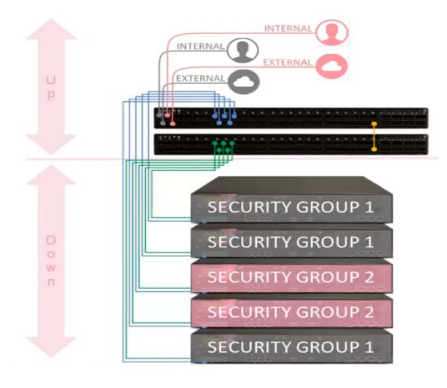

Hyperscale Orchestrator Connections

When a Security Group is created, an IP address is created for a Single Management Object connection to the security management server. Easily create and assign IP addresses to the internal and external network interfaces. These uplinks are the visible components of the Maestro security solution.

Fully Operational within Minutes

When we add a gateway to the system, it gets all the configurations, the policy, even the software version, updated and aligned with the existing deployment, ready to go within 6 minutes.

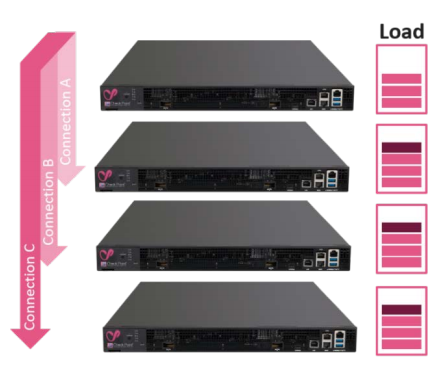

Maestro Traffic Distribution

HyperSync tracks the Active/Standby/Backup state of group members. Sync traffic is limited to only the Active and Standby members handling the connection.

Cost-Efficient N+1 Deployments

Now businesses of all sizes can enjoy cloud-level resiliency and telco-grade technology using the efficient Maestro N+1 clustering design.


Specifications:

Enterprise Testing Conditions
Threat Prevention1 (Gbps) 30
NGFW2 (Gbps) 51.5
IPS Throughput (Gbps) 52.2
Firewall Throughput (Gbps) 145
RFC 3511, 2544, 2647, 1242 Performance (LAB)
Firewall 1518B UDP (Gbps) 193
VPN AES-128 (Gbps) 44
Connections per Second 590,000
Concurennt Connections3 49M
Additional Features

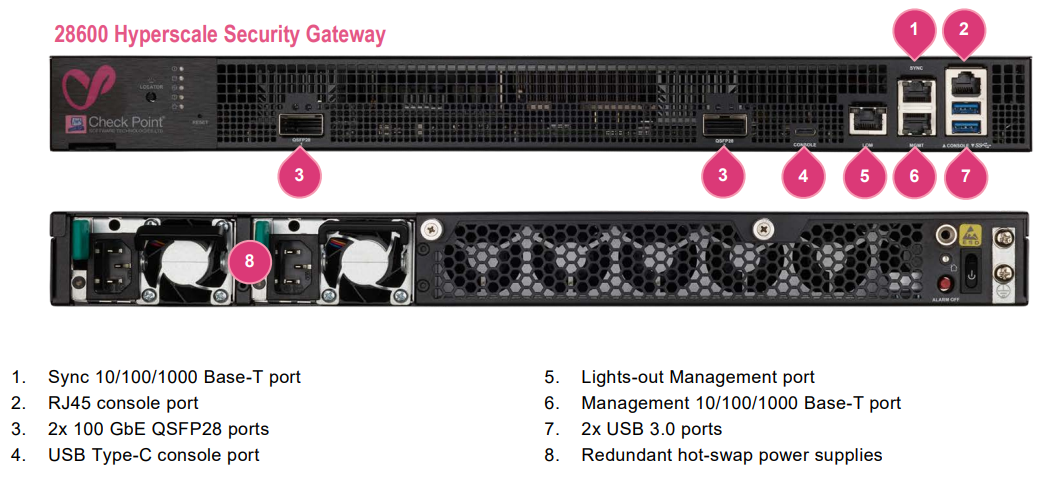

Highlights
  • 2x 100 GbE QSFP28 ports
  • 2x CPUs, 36 physical cores, 72 virtual cores
  • 1x 480 GB storage
  • 2x AC power supplies
  • 192 GB memory
  • Virtual Systems: up to 250
Content Security
First Time Prevention Capabilities
  • CPU-level, OS-level and static file analysis
  • File disarm and reconstruction via Threat Extraction
  • Average emulation time for unknown files that require full sandbox evaluation is under 100 seconds
  • Maximal file size for Emulation is 100 MB
  • Emulation OS Support: Windows XP, 7, 8.1, 10
Applications
  • Use 8,000+ pre-defined or customize your own applications
  • Accept, prevent, schedule, and apply traffic-shaping
Data Loss Prevention
  • Classify 700+ pre-defined data types
  • End user and data owner incident handling
Dynamic User-based Policy
  • Integrates with Microsoft AD, LDAP, RADIUS, Cisco pxGrid, Terminal Servers and with 3rd parties via a Web API
  • Enforce consistent policy for local and remote users on Windows, macOS, Linux, Android and Apple iOS platforms
Network
Network Connectivity
  • Total physical and virtual (VLAN) interfaces per appliance: 1024/4096 (single gateway/with virtual systems)
  • 802.3ad passive and active link aggregation
  • Layer 2 (transparent) and Layer 3 (routing) mode
High Availability
  • Active/Active L2, Active/Passive L2 and L3
  • Session failover for routing change, device and link failure
  • ClusterXL or VRRP
IPv6
  • NAT66
  • CoreXL, SecureXL
Unicast and Multicast Routing (see SK98226)
  • OSPFv2, BGP, RIP
  • Static routes, Multicast routes
  • Policy-based routing
  • PIM-SM, PIM-SSM, PIM-DM, IGMP v2, and v3
Power Requirements
Single Power Supply rating AC: 850W
AC power input 100 to 240V (47-63Hz), 40~-72VDC
Power consumption avg/max AC341W/676W
Maximum thermal output AC 2306 BTU/hr
Dimensions
Enclosure 1RU
Dimensions (WxDxH) 17.4 x 24 x 1.73 in. (442 x 610 x 44mm)
Weight 28.7 lbs. (13 kg)
Environmental Conditions
Operating 0° to 40°C, humidity 5% to 95%
Storage –20° to 70°C, humidity 5% to 95% at 60°C
Certifications
Safety UL, CB, CE, TUV GS
Emissions FCC, CE, VCCI, RCM/C-Tick
Environmental RoHS, WEEE, REACH, ISO14001

1 1. Includes Firewall, Application Control, URL Filtering, IPS, Antivirus, Anti-Bot and SandBlast Zero-Day Protection with logging enabled.
22. Includes Firewall, Application Control and IPS with logging enabled.
